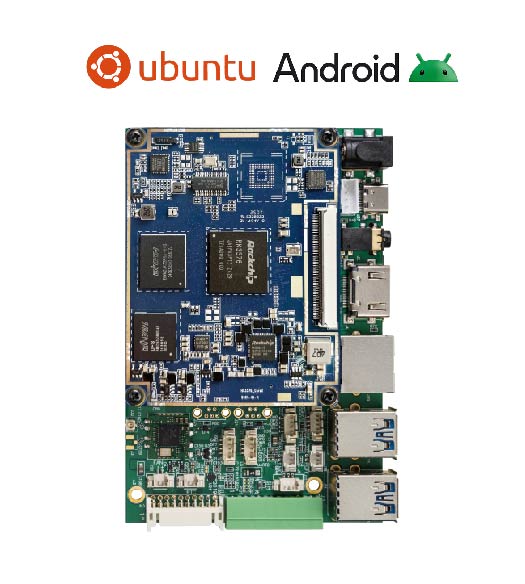

Rockchip RK3576 XB NANO High Computing Power& Low Power
ARM Embedded Single Board Computer - XB NANO

Rockchip RK3576 XB NANO High Computing Power& Low Power

Designed for advanced AI tasks within a small footprint, this board is ideal for industrial and IoT applications. It ensures reliable performance while maintaining compactness. A smart solution for various tech needs.

  • CPU:Octa-core Rockchip RK3576 (4x Cortex-A72 + 4x Cortex-A53), up to 2.2GHz
  • NPU:Integrated 6TOPS NPU for enhanced AI performance
  • Memory & Storage:Up to 16GB LPDDR5 and 256GB eMMC
  • Connectivity Options:I2C, USB, RJ45, SIM, TF, MIC, Bluetooth, Wi-Fi, RS-232, RS-485, GPIO, CAN
  • Multimedia Interfaces:HDMI IN/OUT, eDP, LVDS, MIPI
  • Expansion Support:1x Mini-PCIe 4G/5G
  • Power Input:DC 12V
  • Power Consumption:5W (Max)
  • Operating Temperature:0℃ to 70℃ (Optional:-20℃ to 70℃ /-40℃ to 85℃)
  • Connectors:1.25/2.0mm pitch wire-to-board

RK3576

RK3576
  • Performance:2D/3D graphics processing and full HD video encoding/decoding
  • OS Compatibility:Android 12, Ubuntu 22.04

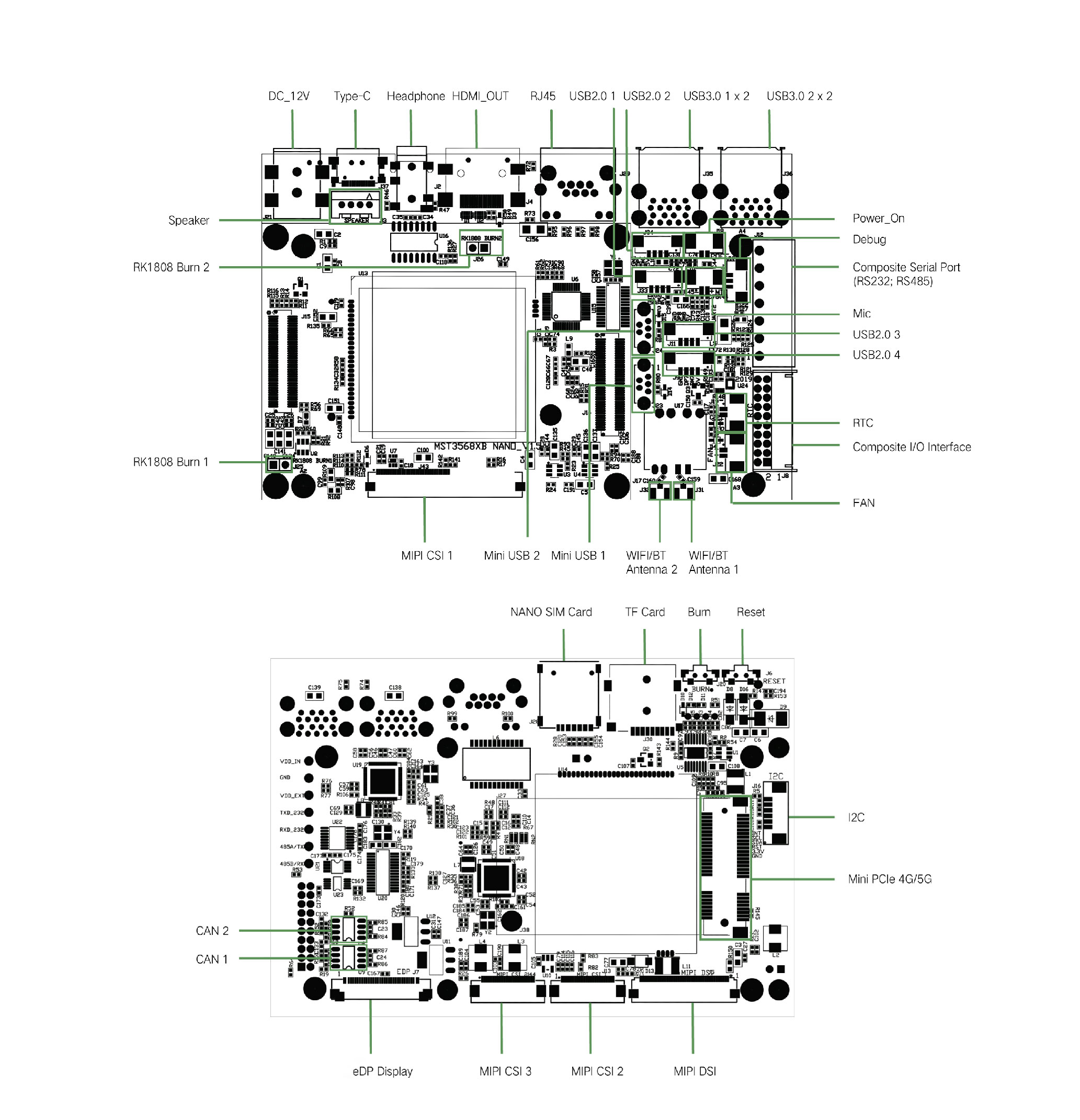

Comprehensive Interfaces
  • Ethernet:1000M RJ-45 x 1
  • USB:USB3.0x4;USB2.0x4; Mini USB x 2
  • Audio:Amplifier x 1; MIC x 1

Comprehensive Interfaces

Innovative Capabilities

Innovative Capabilities
  • Graphics:Supports dual-screen independent display via HDMI
  • Wireless:802.11 b/g/n Wi-Fi (optional 802.11 ac/ax), BT4.2 (optional BT5.0/5.2)
Absolute Maximum Ratings
  • Input Voltage:DC 12V
  • Power Consumption:5W (Max)
  • Operating Temperature:0℃ to 70℃ (Optional:-20℃ to 70℃ /-40℃ to 70℃)

Absolute Maximum Ratings

SDK
Provide SDK Toolkit
Provide API
Documents
Product Documentation
Tutorials and Examples
  • Technical Online Support
  • Rapid Response With Solution
PARAMETER TABLE
ParameterDetails
ArchitectureARM
CPUQuad-core ARM Cortex-A72 + Quad-core ARM Cortex-A53 Rockchip RK3576，frequency up to 2.2GHz
OSAndroid 12/Ubuntu 22.04
RAMLPDDR5，4GB（optional 8GB、16GB）
StorageeMMC，16GB（optional 32GB、64GB、128GB、256GB）
Card SlotSupport Micro-SD
ExpansionMini-PCIe 4G/5G
Audio IOAmplifier（8Ω,5W）x 1；3.5mm headphone x 1；MIC x 1
Power InputDC 12V
Ethernet1000M RJ-45 x 1
CANCAN x 2
MIPI CSIMIPI CSI x 2（Support 2MP GC2093、5MP GC5032、13MP OV13855 ）
WiFi802.11 b/g/n x 1（optional 802.11 ac/ax）
BTBT4.2 x 1（selectable version BT5.0/BT5.2）（optional）
Serial portComposite serial port x 1 (RS232*1; RS485*1); Composite I/O port x 1 (TTL*3; CAN*2; GPIO*8)
USBUSB3.0 x 4; USB2.0 x 4；Mini USB x 2
Type-CDownload and debug
HeadphoneSupport 3.5mm dual-channel headphone
GPIO8-way GPIO（optional）
TF cardSupport 1 self-ejecting TF card (Optional)
SIM cardMini-PCIe 4G/5G x 1
RTCSupport
HDMI OUTSupport 4K 3840 x 2160; Supports dual-screen display (Optional)
MIPI DSIMaximum resolution:1200 x 1920; Supports dual-screen independent display (Optional)
eDPMaximum resolution:1200 x 1920; Supports dual-screen independent display (Optional)
Input VoltageDC 12V N/A
Power Consumption8.4W（Max） N/A
Ambient temperature0℃~ 70℃ optional：-20℃~ 70℃ /-40℃~ 85℃
Storage Temperature-40℃~ +85℃ N/A
Transport Temperature-40℃~ +85℃ N/A
Relative Humidity＜ 75%RH N/A
AccessoriesPower Adapter、WIFI/4G antenna, USB debug cable、Speaker /USB camera
