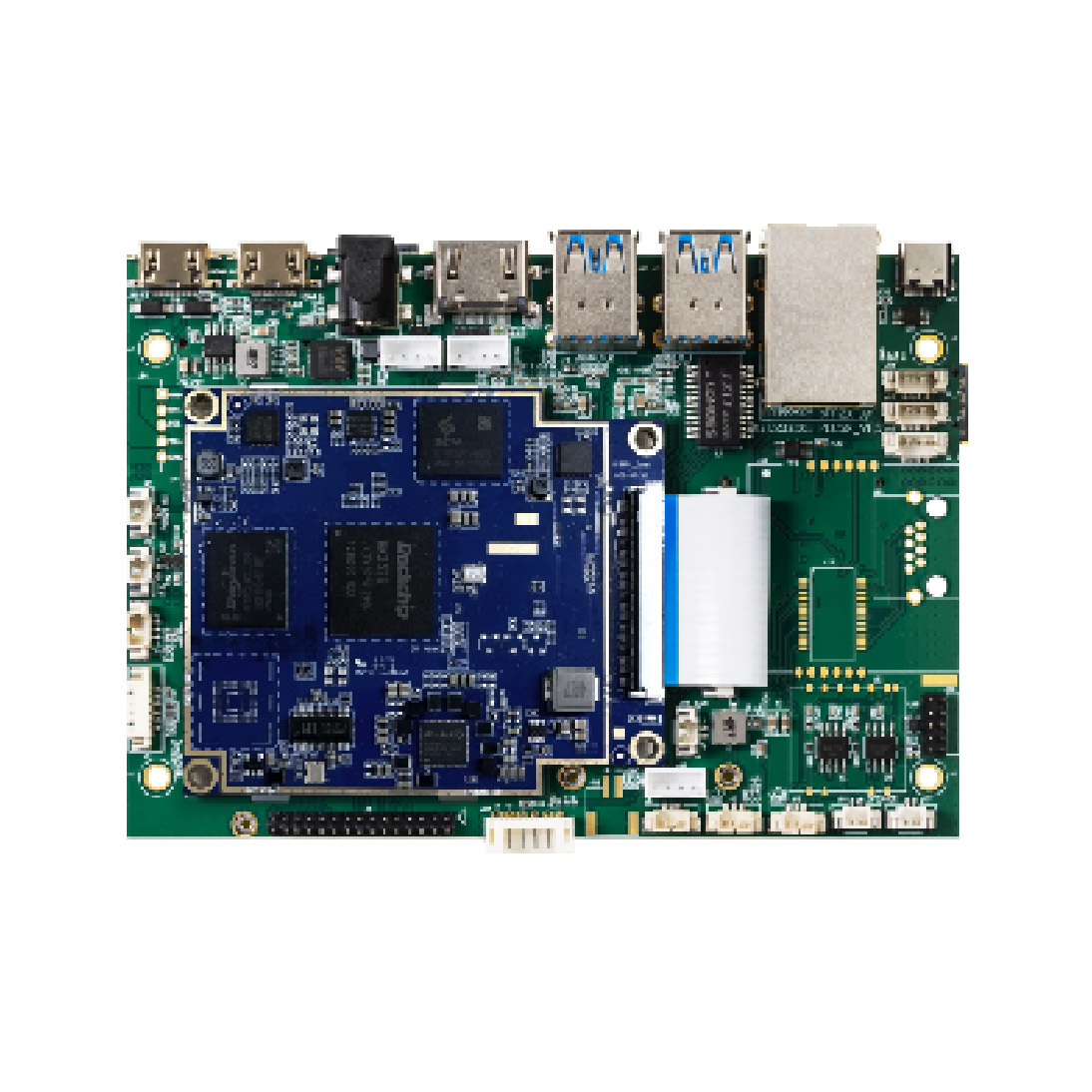

Rockchip RK3576 XB PLUSX High Computing Power & Low Power
ARM Embedded Single Board Computer - XB PLUSX

Rockchip RK3576 XB PLUSX High Computing Power & Low Power

Engineered for demanding industrial environments, this board offers high performance and robust connectivity. Designed for advanced solutions that require reliability and efficiency. A smart choice for critical applications.

  • CPU:Octa-core Rockchip RK3576 (4x Cortex-A72 + 4x Cortex-A53), up to 2.2GHz
  • NPU:Integrated 6TOPS NPU for enhanced AI performance
  • Memory & Storage:Up to 16GB LPDDR5 and 256GB eMMC
  • Storage Options:Supports M.2 SATA SSD
  • Connectivity Options:I2C, USB, RJ45, SIM, TF, MIC, Bluetooth, Wi-Fi, RS-232, RS-485, GPIO, CAN
  • Multimedia Interfaces:Dual HDMI IN/OUT, eDP, LVDS, MIPI
  • Expansion Support:2 x Mini-PCIe 4G/5G
  • Power Input:DC 9-36V
  • Power Consumption:8.4W (Max)
  • Operating Temperature:0℃ to 70℃ (Optional:-20℃ to 70℃ /-40℃ to 85℃)
  • Connectors:1.25/2.0mm pitch wire-to-board

RK3576

RK3576
  • Performance:2D/3D graphics processing and full HD video encoding/decoding
  • OS Compatibility:Android 12, Ubuntu 22.04
Comprehensive Interfaces
  • Ethernet:1000M RJ-45 x 1; optional: 100M RJ-45 x 1
  • USB:USB3.0x2; USB2.0 x 4
  • Audio:Amplifier x 2 (8Ω, 5W); MIC x 1

Comprehensive Interfaces

Innovative Capabilities

Innovative Capabilities
  • Graphics:Supports dual-screen independent display via HDMI
  • Wireless:802.11 b/g/n Wi-Fi (optional 802.11 ac/ax), BT4.2 (optional BT5.0/5.2)
Absolute Maximum Ratings
  • Input Voltage:DC 12V
  • Power Consumption:8.4W (Max)
  • Operating Temperature:0℃ to 70℃ (Optional:-20℃ to 70℃ /-40℃ to 85℃)
  • Storage Temperature:-25℃ to 70℃ (Optional:-40℃ to 70℃)

Absolute Maximum Ratings

SDK
Provide SDK Toolkit
Provide API
Documents
Product Documentation
Tutorials and Examples
  • Technical Online Support
  • Rapid Response With Solution
PARAMETER TABLE
ParameterDetails
ArchitectureARM
CPUQuad-core ARM Cortex-A72 + Quad-core ARM Cortex-A53 Rockchip RK3576，frequency up to 2.2GHz
OSAndroid 12/Ubuntu 22.04
RAMLPDDR5，4GB（optional 8GB、16GB）
StorageeMMC，32GB（optional 64GB、128GB、256GB）
ExpansionSupport Mini-PCIe 4G/5G
Audio IOAmplifier x 2（4Ω，3W）（optional 8Ω，5W/10W）；MIC x 1（optional）
Power InputDC 9-12V
Ethernet1000M RJ-45 x 2；100M/1000M RJ-45 x 1（one optional）
CANCANx2
HDMI OUT4K x 1 (3840x2160)；Supports dual-screen independent display
HDMI IN4K x 1 (3840x2160) (Optional)
USBUSB3.0-Type A x 4 (J41 is used for two OTG USB3.0, shared with TYPE-C); USB2.0 x 3 (4P-PH1.25mm) (U_2 is shared with J42 expansion board)
WIFI802.11 b/g/n x 1（optional 802.11 ac/ax）
BTBT4.2 x 1（selectable version：BT5.0/5.2）（optional）
UARTRS-232 x 2；RS-485 x 1,（optional TTL）
Type-CDownload and debug
HeadphoneSupport 3.5mm dual-channel headphone（optional）
RTCSupport
GPIO8 x GPIO x 1(optional）
TF cardSupports 1 self-ejecting TF card (Optional)
SIM cardMini-PCIe 4G/5G x 1；Mini-PCIe 5G x 1（optional）
LVDSMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
MIPIMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
eDPMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
SATAM.2 SATA x 1
Input VoltageDC 9-12V
Power Consumption8.4W（Max.) N/A
Ambient temperature0℃~ 70℃ optional：-20℃~ 70/-40℃~ 85℃
Storage Temperature-25℃~ 70℃ N/A
Transport Temperature-25℃~ 70℃ N/A
Relative Humidity<75%RH N/A
