Industrial XB Nano Mini PC
ARM Industrial Mini PC

Industrial XB Nano Mini PC

The Industrial XB Nano Mini PC offers reliable performance and robust durability, making it the perfect solution for a wide range of industries. Designed for industrial control, automation, robotics, healthcare, digital signage, and more, this compact powerhouse ensures exceptional speed, versatile connectivity, and consistent operation in challenging environments.

Small in Size, Big on Performance

  • Processor:RK3568/RK3588/RK3399/RK3576/BM1688, up to 2.4GHz
  • Memory & Storage:Supports up to 32GB LPDDR4 and 256GB eMMC storage
  • Connectivity Options:HDMI, USB (4 x USB 3.0), RJ45, SIM, TF Card, Bluetooth, WiFi, RS232, RS485
  • Expansion:Supports 1 x Mini-PCIe 4G/5G
  • Resolution:Supports up to 3840 x 2160 (4K) with dual-screen independent display
  • Power Input:DC 12V
  • Power Consumption:8.5W (Max)
  • Operating Temperature:0℃ to +70℃ (optional: -20℃ to +70℃ and -40℃ to +85℃ for storage)
  • OS Compatibility:Android 14, Ubuntu 20.04, Debian 11, Buildroot, NeoKylin

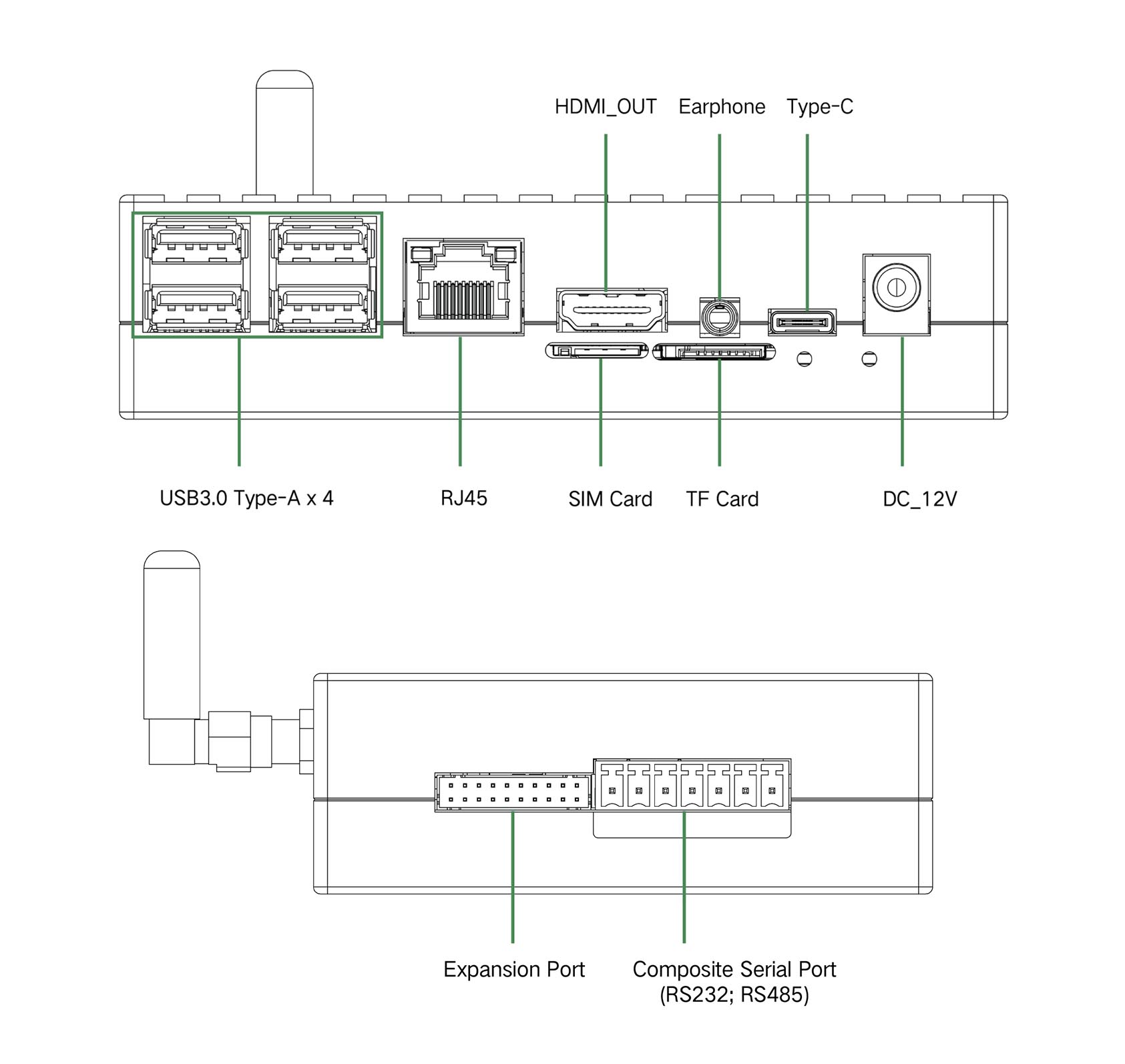

High-Density USB Expansion

High-Density USB Expansion
  • Connections:4× USB 3.0, Type-C
  • Power Input:9-36V
  • Interfaces:1× Gigabit Ethernet, RS232, RS485, TF/SIM slots
  • Accessories:Standard power adapter; optional antenna
  • Design:Compact layout with double-sided interfaces
Innovative Capabilities:
  • Quality:Rugged mini box construction for enhanced durability
  • Expansion:Mini-PCIe 4G/5G support, GPIO options, optional GPS
  • OS:Pre-installed Linux/Android options available

Innovative Capabilities:

High-Performance Chip Solutions

High-Performance Chip Solutions
  • Powerful Performance:Industrial Mini PC powered by Rockchip and ARM architecture
  • Passive Cooling:Efficient, fanless design for reliability
  • Versatile Applications:Ideal for machine vision, factory automation, and more
SDK
Provide SDK Toolkit
Provide API
Documents
Product Documentation
Tutorials and Examples
  • Technical Online Support
  • Rapid Response With Solution
PARAMETER TABLE
SpecificationRK3568RK3588RK3576RK3399RK3566BM1688
CPUQuad-Core Cortex-A55, up to 2.0GHzOcta-Core Cortex-A76/A55, up to 2.4GHzHexa-Core Cortex-A55, up to 2.2GHzHexa-Core Cortex-A72/A53, up to 1.8GHzArm RK3566, up to 1.8GHzQuad-Core Cortex-A55, up to 1.6GHz
GPUMali-G52Mali-G610Mali-G52Mali-T860Mali-G57INT8
NPU1T6T6T//16T
RAM2/4/8 GB4/8/16 GB4/8/16 GB4/8/16 GB2/4/8 GBUp to 4GB
StorageUp to 128GB eMMCUp to 128GB eMMCUp to 128GB eMMCUp to 128GB eMMCUp to 128GB eMMCUp to 128GB eMMC
Resolution3840 x 2160 (4K)3840 x 2160 (4K)3840 x 2160 (4K)3840 x 2160 (4K)3840 x 2160 (4K)3840 x 2160 (4K)
ConnectivityHDMI, Bluetooth, Wi-Fi, RS232, RS485, TFHDMI, Bluetooth, Wi-Fi, RS232, RS485, TFHDMI, Bluetooth, Wi-Fi, RS232, RS485, TFHDMI, Bluetooth, Wi-Fi, RS232, RS485, TFHDMI, Bluetooth, Wi-Fi, RS232, RS485, TFHDMI, Bluetooth, Wi-Fi, RS232, RS485, TF
Expansion1 x Mini-PCIe 4G/5G1 x Mini-PCIe 4G/5G1 x Mini-PCIe 4G/5G1 x Mini-PCIe 4G/5G1 x Mini-PCIe 4G/5G1 x Mini-PCIe 4G/5G
Power InputDC 12VDC 12VDC 12VDC 12VDC 12VDC 12V
Power Consumption5W (Max)8.5W (Max)8.5W (Max)5W (Max)5W (Max)8.5W (Max)
Operating Temperature0℃ to +70℃0℃ to +70℃0℃ to +70℃0℃ to +70℃0℃ to +70℃0℃ to +70℃
OS CompatibilityAndroid/LinuxAndroid/LinuxAndroid/LinuxAndroid/LinuxAndroid/LinuxAndroid/Linux
Ethernet1000M RJ-45 x 11000M RJ-45 x 11000M RJ-45 x 11000M RJ-45 x 11000M RJ-45 x 11000M RJ-45 x 1
USBUSB 3.0 Type-A x 4USB 3.0 Type-A x 4USB 3.0 Type-A x 4USB 3.0 Type-A x 4USB 3.0 Type-A x 4USB 3.0 Type-A x 4
HDMI1×1080p (optional)1×4K 3840×2160 (optional)1×4K 3840×2160 (optional)1×1080p (optional)1×1080p (optional)1×1080p (optional)
AudioDual amplifiers with headphone supportDual amplifiers with headphone supportDual amplifiers with headphone supportDual amplifiers with headphone supportDual amplifiers with headphone supportDual amplifiers with headphone support
OtherBT, RTC, earphone, Power adaptor/Type-C Download or debug cable/Loud speaker/USB camera optional
