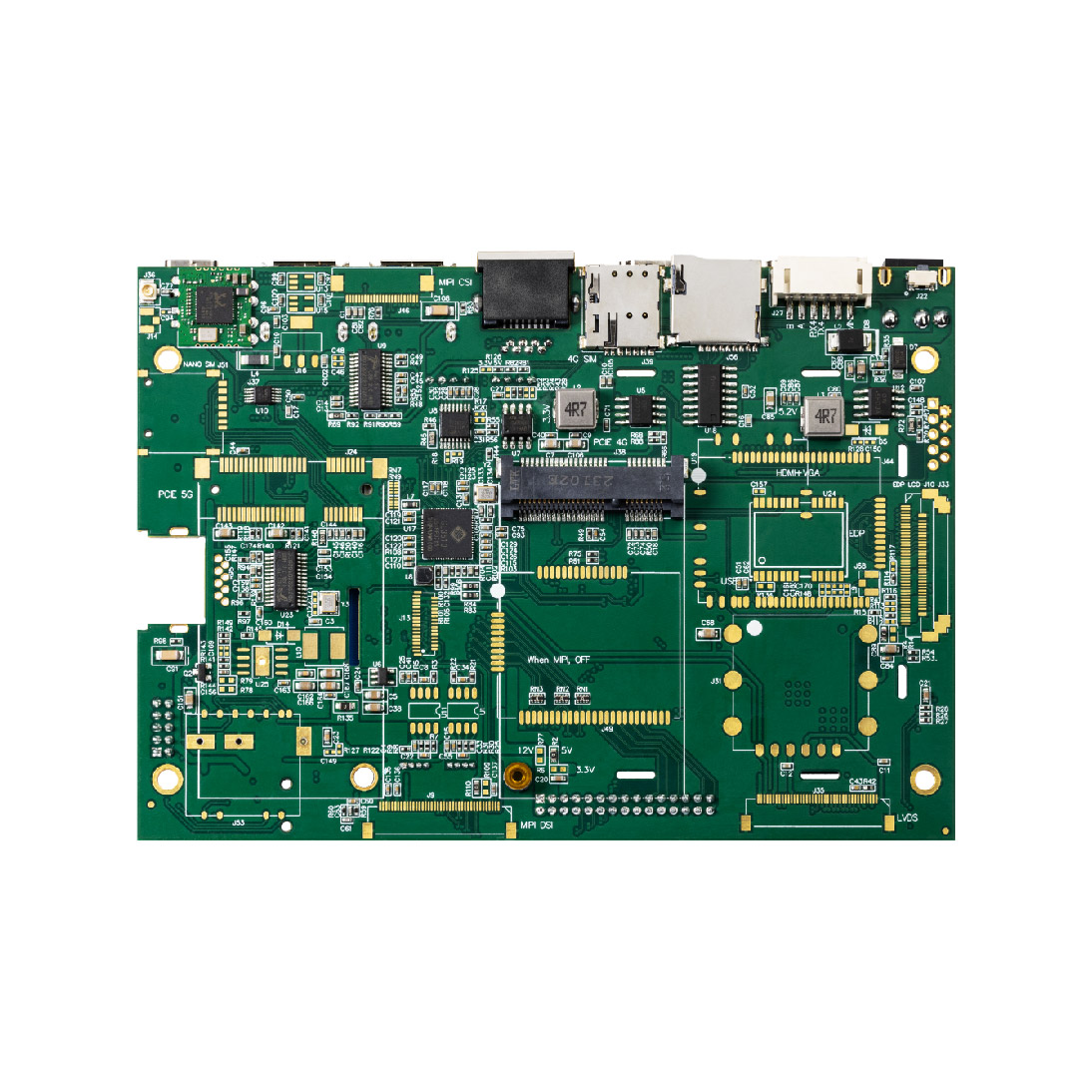

Rockchip RK3576 XB PLUS High Computing Power & Low Power
ARM Embedded Single Board Computer - XB PLUS

Rockchip RK3576 XB PLUS High Computing Power & Low Power

Optimized for high-performance tasks, this board is suited for industrial applications requiring reliability. With extensive connectivity options, it handles complex operations effectively. A dependable choice for demanding environments.

  • CPU:Octa-core Rockchip RK3576 (4x Cortex-A72 + 4x Cortex-A53), up to 2.2GHz
  • NPU:Integrated 6TOPS NPU for enhanced AI performance
  • Memory & Storage:Up to 16GB LPDDR5 and 256GB eMMC
  • Connectivity Options:I2C, USB, RJ45, SIM, TF, MIC, Bluetooth, Wi-Fi, RS-232, RS-485, GPIO, CAN
  • Multimedia Interfaces:HDMI IN/OUT, eDP, LVDS, MIPI
  • Expansion Support:2 x Mini-PCIe 4G/5G
  • Power Input:DC 9-36V
  • Power Consumption:8.4W (Max)
  • Operating Temperature:0℃ to 70℃ (Optional:-20℃ to 70℃ /-40℃ to 85℃)
  • Connectors:1.25/2.0mm pitch wire-to-board

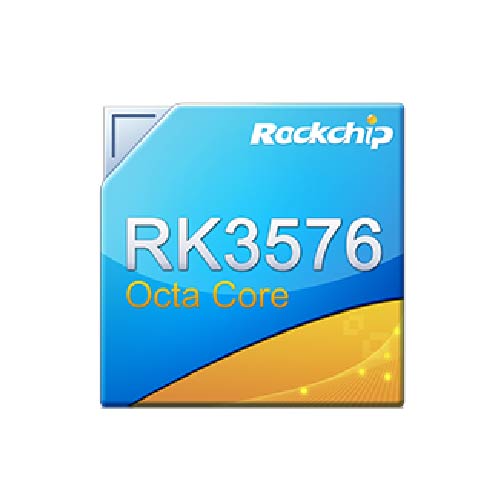

RK3576

RK3576
  • Performance:2D/3D graphics processing and full HD video encoding/decoding
  • OS Compatibility:Android 14, Ubuntu 22.04

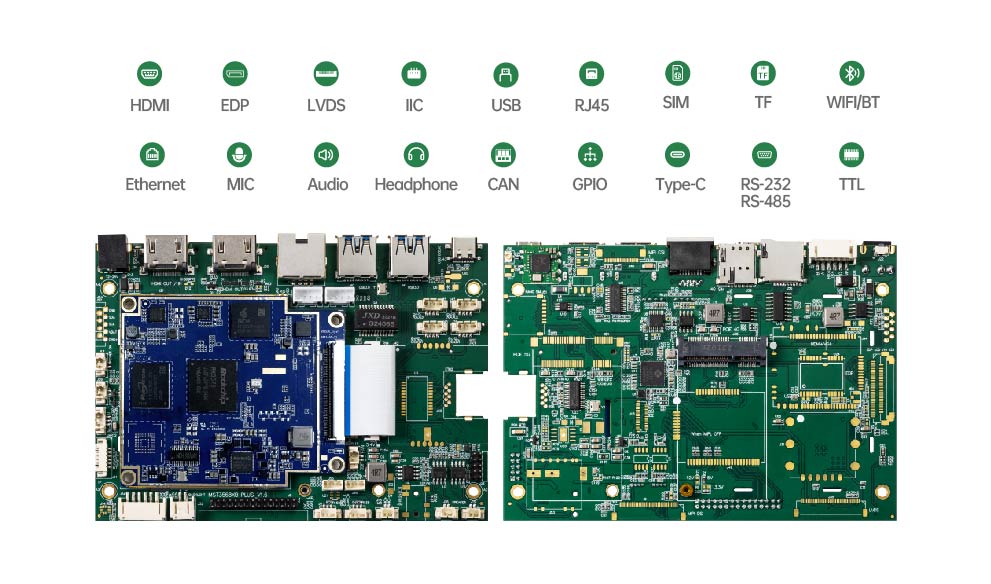

Comprehensive Interfaces
  • Ethernet:1000M RJ-45 x 1; optional: 1000M RJ-45 x 1
  • USB:USB3.0x2; USB2.0 x 4
  • Audio:Amplifier x 2 (8Ω, 5W); MIC x 1

Comprehensive Interfaces

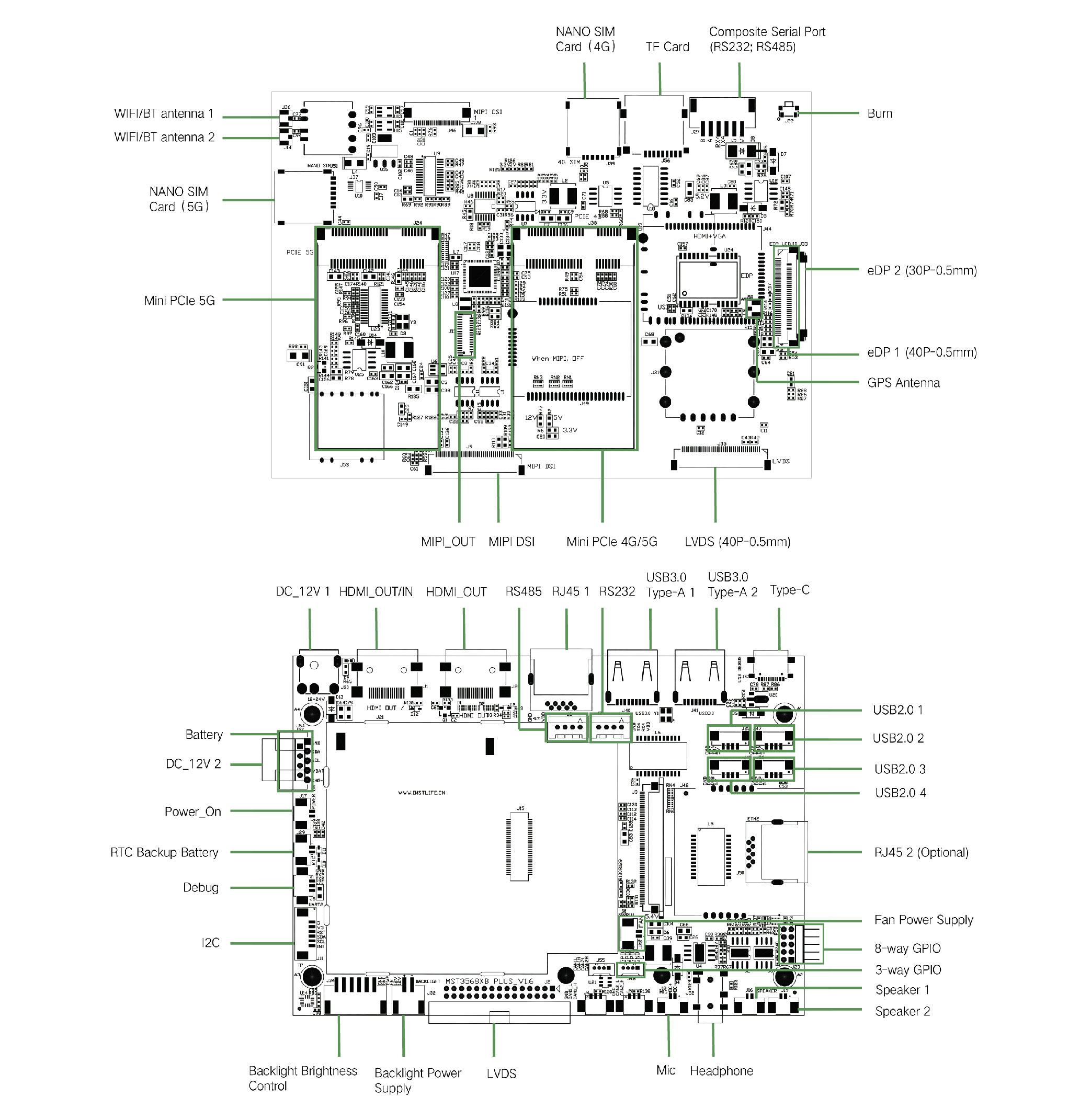

Innovative Capabilities

Innovative Capabilities
  • Graphics:Supports dual-screen independent display via HDMI
  • Wireless:802.11 b/g/n Wi-Fi (optional 802.11 ac/ax), BT4.2 (optional BT5.0/5.2)

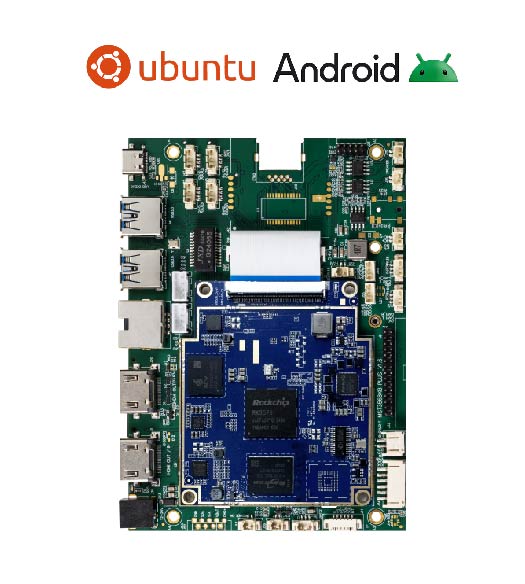

Absolute Maximum Ratings
  • Input Voltage:DC 12V
  • Power Consumption:8.4W (Max)
  • Operating Temperature:0℃ to 70℃ (Optional:-20℃ to 70℃ /-40℃ to 85℃)
  • Storage Temperature:-20℃ to 70℃ (Optional:-40℃ to 70℃)

Absolute Maximum Ratings

SDK
Provide SDK Toolkit
Provide API
Documents
Product Documentation
Tutorials and Examples
  • Technical Online Support
  • Rapid Response With Solution
PARAMETER TABLE
ParameterDetails
ArchitectureARM
CPUQuad-core ARM Cortex-A72 + Quad-core ARM Cortex-A53 Rockchip RK3576，frequency up to 2.2GHz
OSAndroid 12/Ubuntu 22.04
RAMLPDDR5，4GB（optional 8GB、16GB）
StorageeMMC，32GB（optional 64GB、128GB、256GB）
ExpansionSupport Mini-PCIe 4G/5G
Audio IOAmplifier x 1（8Ω,5W）；MIC x 1
Power InputDC 12V (optional: 9-36V)
Ethernet1000M RJ-45 x 2 （one optional）
USBUSB3.0 Type-A x 2; USB2.0 x 4
CANCANx2
MIPI CSIMIPI CSI x 2; Supports 2MP GC2093, 5MP GC5032, and 13MP OV13855
WIFI802.11 b/g/n x 1（optional 802.11 ac/ax）
BTBT4.2 x 1（selectable version：BT5.0/5.2）（optional）
UARTRS-232 x 2；RS-485 x 1,composite（RS232;RS485）x 1
Type-CDownload and debug
HeadphoneSupport 3.5mm dual-channel headphone（optional）
RTCSupport
GPIO8 x GPIO x 1；3 x GPIO x 1（optional）
TF cardSupports 1 self-ejecting TF card (Optional)
SIM cardMini-PCIe 4G/5G x 1；Mini-PCIe 5G x 1（optional）
HDMI OUT4K x 1 (3840x2160)；Supports dual-screen independent display
HDMI IN4K x 1 (3840x2160) (Optional)
LVDSMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
MIPIMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
eDPMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
Input VoltageDC 12V N/A
Power Consumption8.4W（Max.) N/A
Ambient temperature0℃~ 70℃ optional：-20℃~ 70/-40℃~ 85℃
Storage Temperature-40℃~ 85℃ N/A
Transport Temperature-40℃~ 85℃ N/A
Relative Humidity<75%RH N/A
