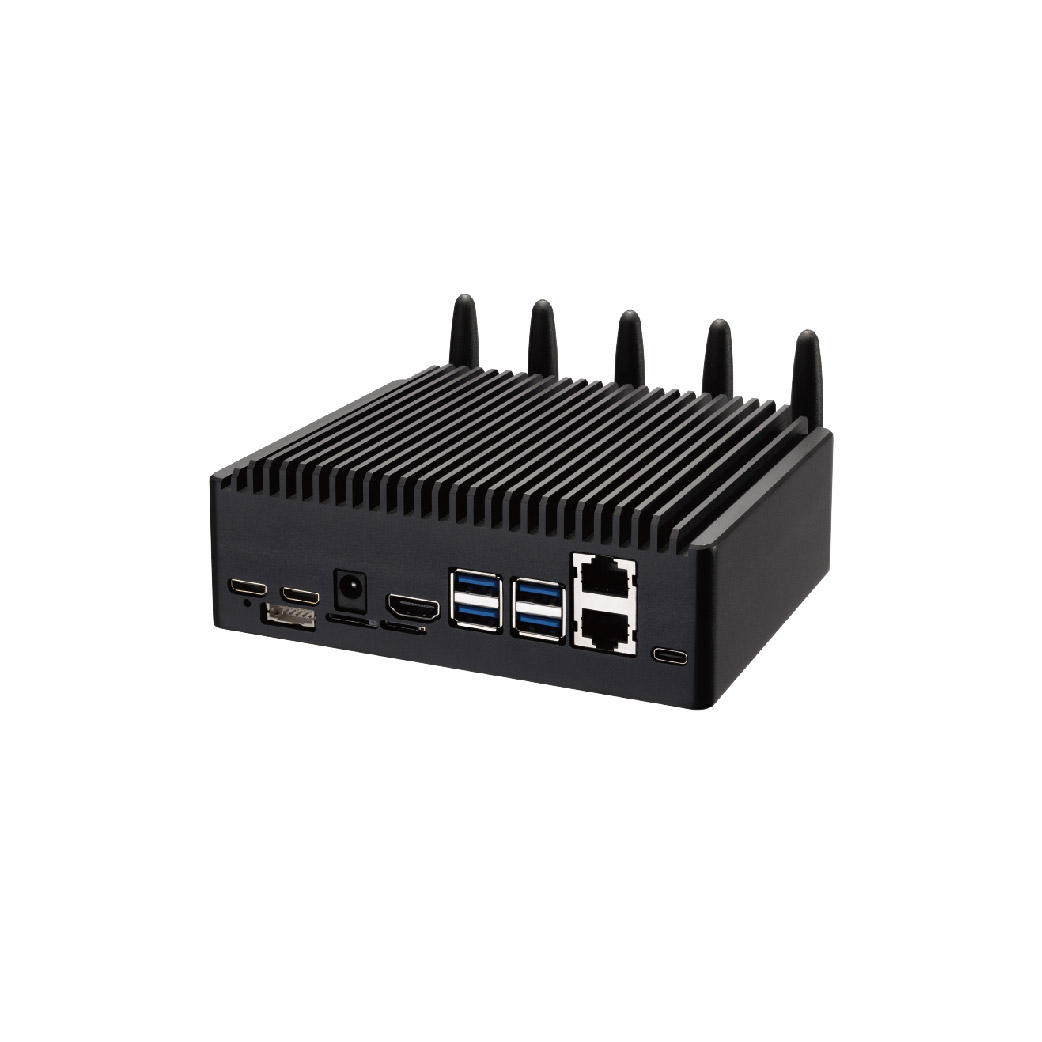

Industrial XB Plus Mini PC
ARM Industrial Mini PC

Industrial XB Plus Mini PC

The Industrial XB Plus Mini PC is built to meet the needs of demanding environments, offering reliable performance and a broad range of connectivity options. Ideal for applications in smart manufacturing, edge computing, machine vision, and real-time data processing, this compact device ensures efficiency and durability. Its rugged design guarantees dependable operation in the most challenging conditions, making it an essential solution for modern industries.

High-Performance, Compact, and Versatile

  • Processor:RK3568/RK3588/RK3399/RK3576/VS680, up to 2.4GHz
  • Memory & Storage:Up to 32GB LPDDR4 and 256GB eMMC
  • Video Outputs:HDMI IN/OUT, eDP, LVDS, MIPI
  • Expansion Slots:2 x Mini-PCIe 4G/5G
  • Power Input:DC 9-36V
  • Max Power Draw:8.5W
  • Connectors:1.25/2.0mm pitch wire-to-board
  • Connectivity Options:I2C, SIM, CAN, GPIO, Bluetooth, Wi-Fi, RS-232, RS-485, MIC, Speaker, Headphone, TTL
  • OS Support:Android 14, Ubuntu 20.04, Debian 11, Buildroot, NeoKylin

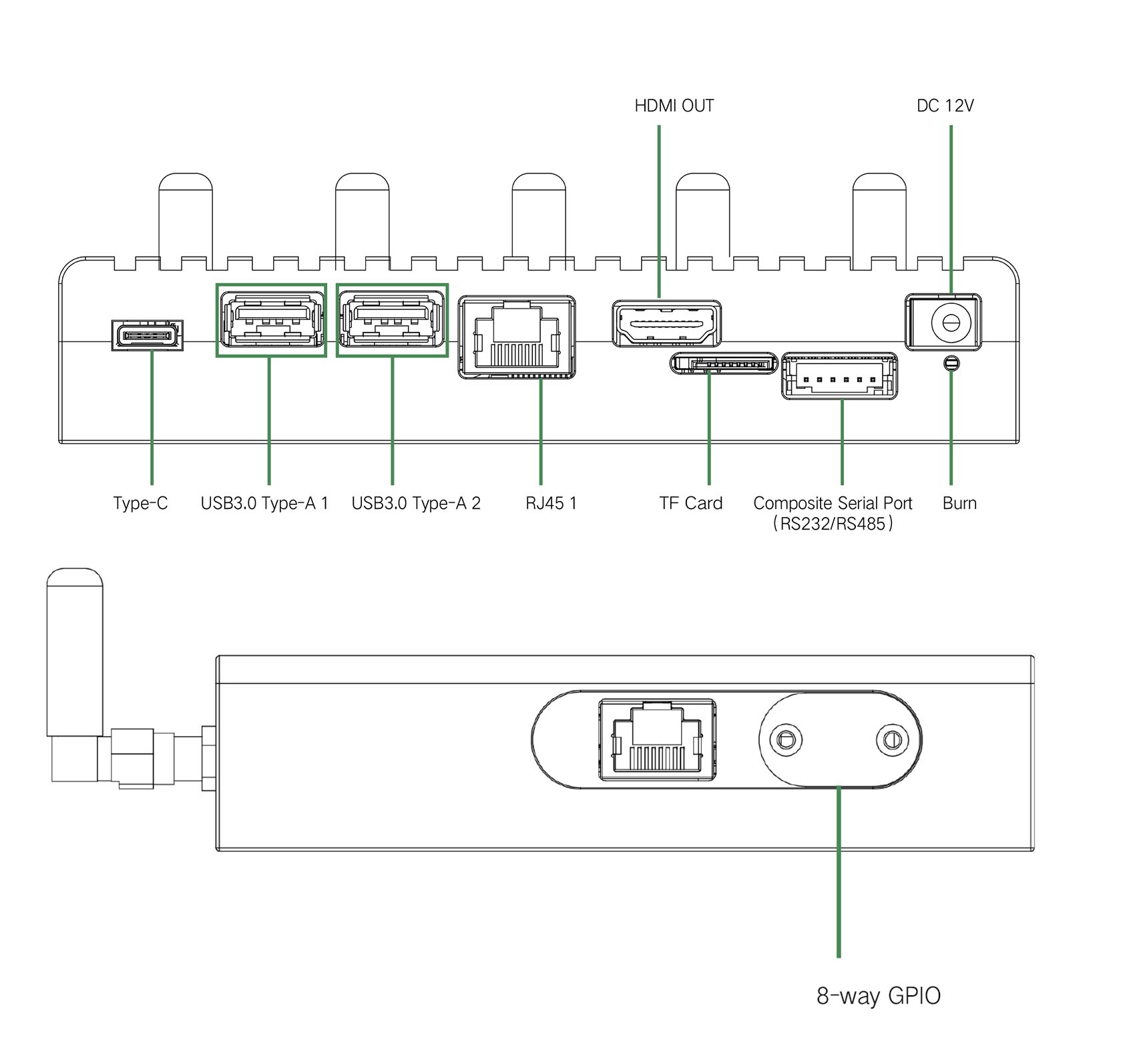

Wide-Voltage Industrial Enhancement

Wide-Voltage Industrial Enhancement
  • Power Input:9-36V
  • Connectivity:Dual Ethernet (one optional)
  • Interfaces:2× USB 3.0, RS232, RS485, 8× GPIO
  • Accessories:Standard antenna; optional adapter
  • Temperature Range:-40℃ to 85℃

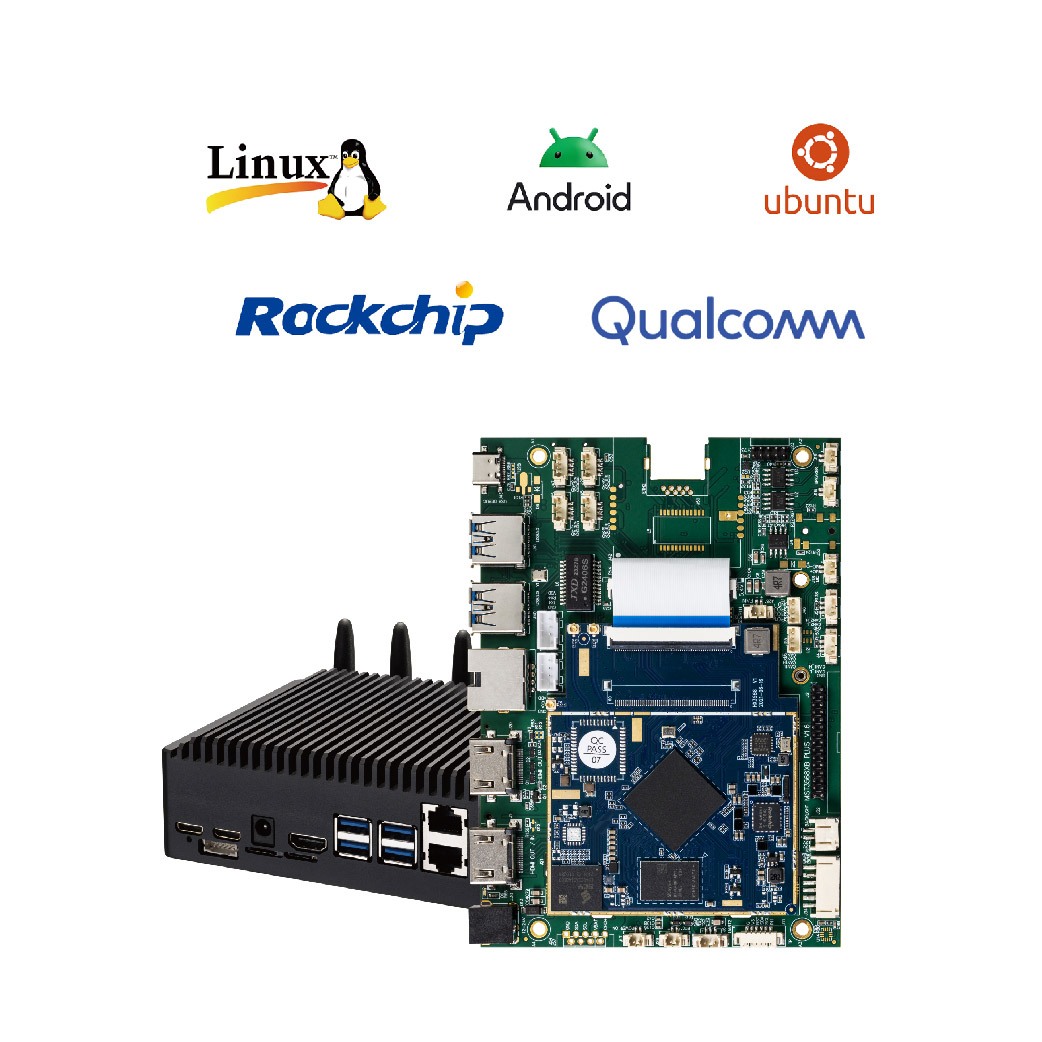

Interface Capabilities
  • Quality:Fanless aluminum alloy construction for enhanced durability and quiet operation
  • Expansion:GPIO options and RTC support for additional functionality
  • Connectivity:Wi-Fi 802.11 b/g/n/ac/ax and Bluetooth 5.0 for seamless integration

Interface Capabilities

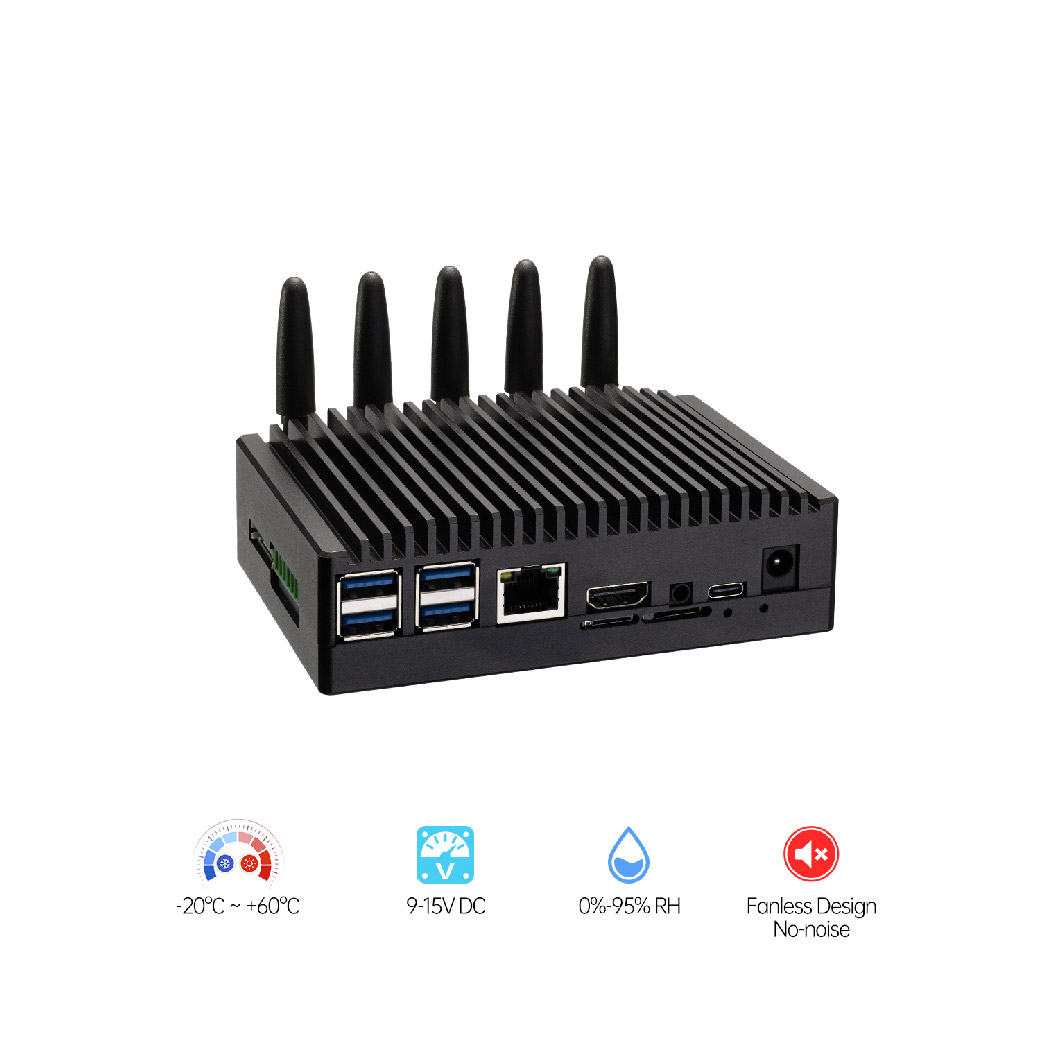

High-Performance Chip Solutions

High-Performance Chip Solutions
  • Powerful Performance:Industrial Mini PC powered by Rockchip and ARM architecture
  • Passive Cooling:Efficient, fanless design for reliability
SDK
Provide SDK Toolkit
Provide API
Documents
Product Documentation
Tutorials and Examples
  • Technical Online Support
  • Rapid Response With Solution
PARAMETER TABLE
SpecificationRK3568RK3588RK3576RK3399RK3566Qualcomm 680
CPUQuad-Core Cortex-A55, up to 2.0GHzOcta-Core Cortex-A76/A55, up to 2.4GHzHexa-Core Cortex-A55, up to 2.2GHzHexa-Core Cortex-A72/A53, up to 1.8GHzArm RK3566, up to 1.8GHzSnapdragon 680, up to 2.1GHz
GPUMali-G52Mali-G610Mali-G52Mali-T860Mali-G57Adreno 610
NPU1T6T6T//6.74T
RAM2/4/8 GB4/8/16 GB4/8/16 GB4/8/16 GB2/4/8 GBUp to 4GB
StorageUp to 128GB eMMCUp to 128GB eMMCUp to 128GB eMMCUp to 128GB eMMCUp to 128GB eMMCUp to 128GB eMMC
Resolution3840 x 2160 (4K)3840 x 2160 (4K)3840 x 2160 (4K)3840 x 2160 (4K)3840 x 2160 (4K)3840 x 2160 (4K)
ConnectivityHDMI, Bluetooth, Wi-Fi, RS232, RS485, TFHDMI, Bluetooth, Wi-Fi, RS232, RS485, TFHDMI, Bluetooth, Wi-Fi, RS232, RS485, TFHDMI, Bluetooth, Wi-Fi, RS232, RS485, TFHDMI, Bluetooth, Wi-Fi, RS232, RS485, TFHDMI, Bluetooth, Wi-Fi, RS232, RS485, TF
Expansion2 x Mini-PCIe 4G/5G2 x Mini-PCIe 4G/5G2 x Mini-PCIe 4G/5G2 x Mini-PCIe 4G/5G2 x Mini-PCIe 4G/5G1 x Mini-PCIe 4G/5G
Power InputDC 12VDC 12VDC 12VDC 12VDC 12VDC 12V
Power Consumption5W (Max)8.5W (Max)8.5W (Max)5W (Max)5W (Max)8.5W (Max)
Operating Temperature0℃ to +70℃0℃ to +70℃0℃ to +70℃0℃ to +70℃0℃ to +70℃0℃ to +70℃
HDMI Out1×4k (optional)1×4k (optional)1×4k (optional)1×4k (optional)1×4k (optional)1×4k (optional)
OS CompatibilityAndroid/LinuxAndroid/LinuxAndroid/LinuxAndroid/LinuxAndroid/LinuxAndroid/Linux
Ethernet1000M RJ-45 x 21000M RJ-45 x 21000M RJ-45 x 21000M RJ-45 x 21000M RJ-45 x 21000M RJ-45 x 2
USBUSB 3.0 x 2USB 3.0 x 2USB 3.0 x 2USB 3.0 x 2USB 3.0 x 2USB 3.0 x 2
HDMI Input1×1080p (optional)1×4K 3840×2160 (optional)1×4K 3840×2160 (optional)1×1080p (optional)1×1080p (optional)1×1080p (optional)
AudioDual amplifiers with headphone supportDual amplifiers with headphone supportDual amplifiers with headphone supportDual amplifiers with headphone supportDual amplifiers with headphone supportDual amplifiers with headphone support
OtherBT, RTC, earphone, Power adaptor/Type-C Download or debug cable/Loud speaker/USB camera optional
