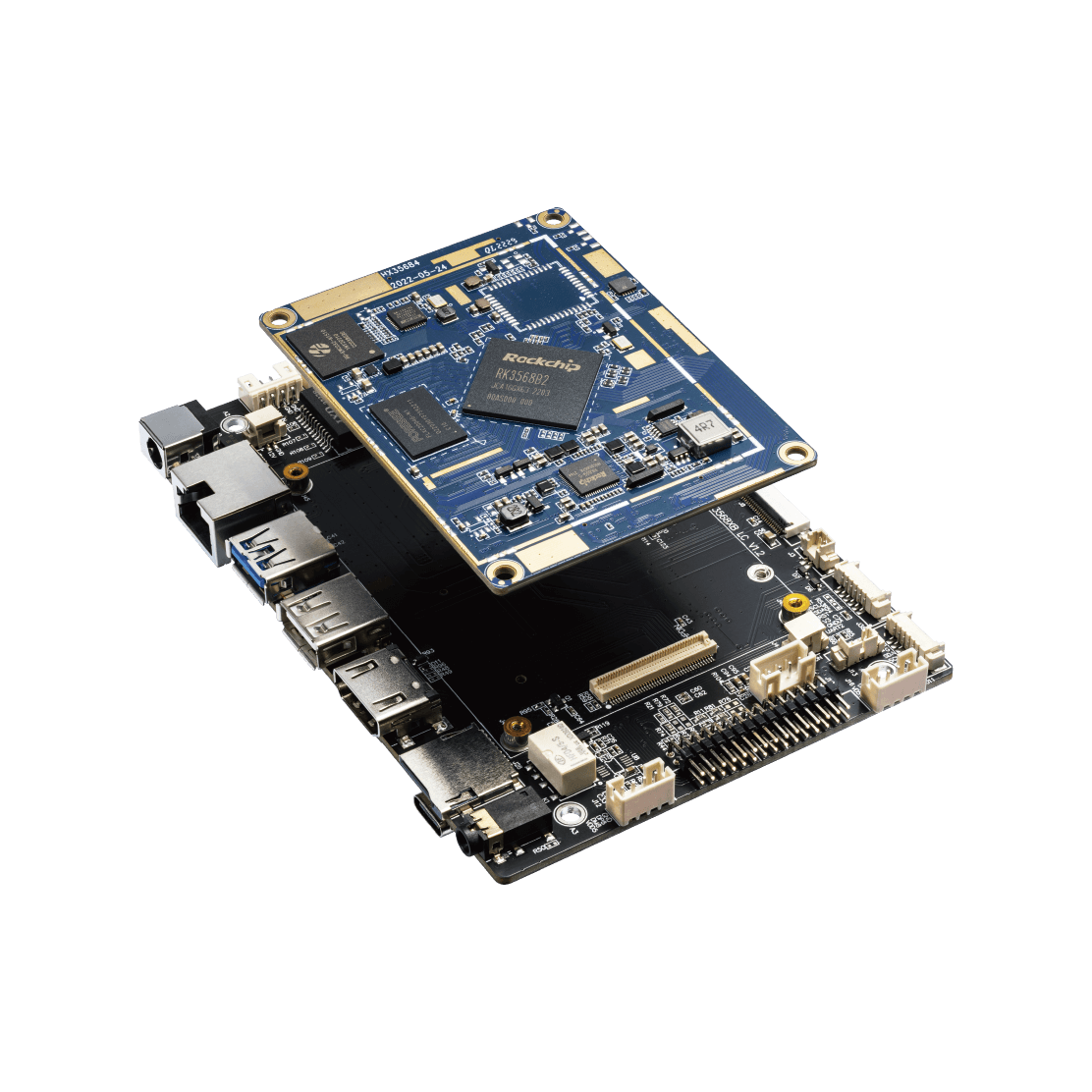

Industrial-Grade ARM-Based SBCs
In-House Board + Display Integration
End-to-End Technical Support from Design to Delivery
Low-Volume ODM Customization
10-Year Supply Support
Versatile Processor Options:
Choose from Rockchip and Qualcomm processors to meet your performance needs. Custom models are available for specific requirements.
Flexible, Customizable Interfaces:
With over 24 industrial-grade interfaces like HDMI, EDP, LVDS, USB, CAN, RS-232, and RS-485, our SBCs offer the flexibility to fit any application.
Built for Harsh Environments:
Engineered for durability, our SBCs are built to withstand extreme conditions, providing reliable, long term performance in challenging environments.
XB Series
The XB Series is designed for applications in machine tool control, rail transport, medical devices, and industrial all-in-one systems with multi-screen monitoring.
- Multi-Screen Coordination:Professional motherboard with exclusive support for LVDS/EDP/MIPI three-channel independent displays.
- Comprehensive Integration:Integrates 12 signal types via the J18 composite interface, supporting 8 GPIO, USB ports, 4G/5G, TF card, headphone jack, and more.
- Reliable Connectivity:Uses PH2.0 industrial connectors to enhance interface stability by 50% in vibration-prone environments.
Core Features
- ●Processors:RK3568 | RK3399 | RK3588 | RK3576 | VS680 | VS450 | A133
- ●Multimedia Interfaces:HDMI IN/OUT, eDP, LVDS, and MIPI
- ●Expansion:Supports 1 x Mini-PCIe 4G/5G modules
- ●Power Supply:Input voltage of DC 9-36V
- ●Connectors:1.25/2.0mm pitch wire-to-board connectors
- ●Expansion Capability:J18 composite interface integrates GPIO/serial/USB (space-saving design)
- ●Power Supply:9-12V wide voltage input, power consumption ≤8.5W (RK3588)
- ●Dimensions:126 x 87mm
RK3399 XB
- CPU:RK33992*A72+4*A53 1.8GHz
- DDR:2GB / 4GB
- eMMC:32GB / 64GB / 128GB / 256GB
- OS:Android 12 / Debain 11 / BuildrootUbuntu 20.04
RK3568 XB
- CPU:RK35684*A55 2.0GHz
- DDR:2GB / 4GB / 8GB
- eMMC:8GB / 32GB / 64GB / 128GB
- OS:Android 11 / Debain 11 / BuildrootUbuntu 18.04 / 20.04
RK3588 XB
- CPU:RK35884*A76+4*A55 2.4GHz
- DDR:4GB / 8GB / 16GB / 32GB
- eMMC:32GB / 64GB / 128GB / 256GB
- OS:Android 12 / Debain 11 / BuildrootUbuntu 20.04
RK3576 XB
- CPU:RK35764*A72+4*A53 2.2GHz
- DDR:2GB / 4GB / 8GB / 16GB / 32GB
- eMMC:8GB / 32GB / 64GB / 128GB
- OS:Android 14 / Ubuntu 20.04
RK3566 XB
- CPU:RK35664*A55 1.8GHz
- DDR:2GB / 4GB / 8GB
- eMMC:8GB / 32GB / 64GB / 128GB
- OS:Android 11 / Debain 11 / Buildroot Ubuntu 18.04 / 20.04 / 银河麒麟
XB NANO Series
The XB NANO Series is widely used in mobile applications such as drones, portable diagnostics, artificial intelligence, edge computing, and high-performance devices.
- Ultra-Compact Design:40% smaller than the PLUS series, integrating full industrial interfaces in a limited space.
- Rugged Performance:Supports -40℃ to 70℃ military-grade wide temperature range (optional), with ultra-low standby power of only 0.8W.
- Enhanced Vision Support:Built-in dual MIPI CSI interfaces (supports 13MP cameras), can connect up to 8 AHD cameras.
- Interfaces:Onboard 4 x USB 3.0 interfaces.
Core Features
- ●Processors:RK3568 | RK3399 | RK3588 | RK3576 | BM1688
- ●Compact Design:Minimizes size, retaining key interfaces (e.g., self-ejecting TF card slot)
- ●Industrial Interfaces:2×MIPI CSI (supports 13MP cameras), dual CAN bus (expansion required for RK3399)
- ●Environmental Adaptability:Operating temperature 060℃, storage extendable to -4070℃ (military-grade optional)
- ●Display Output:EDP/MIPI DSI + HDMI, supporting dual-screen independent display
- ●Dimensions:115 x 75mm
RK3399 XB-NANO
- CPU:RK33992*A72+4*A53 1.8GHz
- DDR:2GB / 4GB
- eMMC:8GB / 32GB / 64GB / 128GB
- OS:Android 7 / Ubuntu 18.04
RK3568 XB-NANO
- CPU:RK35684*A55 2.0GHz
- DDR:2GB / 4GB / 8GB
- eMMC:8GB / 32GB / 64GB / 128GB
- OS:Android 11 / Debain 11 / BuildrootUbuntu 18.04 / 20.04
RK3588 XB-NANO
- CPU:RK35884*A76+4*A55 2.4GHz
- DDR:4GB / 8GB / 16GB / 32GB
- eMMC:32GB / 64GB / 128GB / 256GB
- OS:Android 12 / Debain 11 / BuildrootUbuntu 20.04
RK3576 XB-NANO
- CPU:RK35764*A72+4*A53 2.2GHz
- DDR:2GB / 4GB / 8GB / 16GB / 32GB
- eMMC:32GB / 64GB / 128GB / 256GB
- OS:Android 7 / Ubuntu 20.04
BM1688 XB-NANO
- CPU:BM16888*A53 1.6GHz
- DDR:4GB / 8GB / 16GB
- eMMC:32GB / 64GB / 128GB
- OS:Ubuntu 20.04
XB LC Series
The XB LC Series is designed for applications in machine tool control, rail transport, medical devices, and industrial all-in-one systems with multi-screen monitoring.
- Multi-Screen Coordination:Professional motherboard with exclusive support for LVDS/EDP/MIPI three-channel independent displays.
- Comprehensive Integration:Integrates 12 signal types via the J18 composite interface, supporting 8 GPIO, 6 USB ports, 4G, TF card, headphone jack, and more.
- Reliable Connectivity:Uses PH2.0 industrial connectors to enhance interface stability by 50% in vibration-prone environments.
Core Features
- ●Processors:RK3568 | RK3399 | RK3588 | A133 | BM1688
- ●Multi-Screen Support:HDMI 4K output + LVDS/EDP/MIPI three-channel independent display (supports 1200×1920 + dual-screen)
- ●Reliable Connectivity:PH2.0 connectors (vibration-resistant)
- ●Expansion Capability:J18 composite interface integrates GPIO/serial/USB (space-saving design)
- ●Power Supply:9-12V wide voltage input, power consumption ≤8.5W (RK3588)
- ●Dimensions:126 x 87mm
RK3399 XB-LC
- CPU:RK33992*A72+4*A53 1.8GHz
- DDR:2GB / 4GB
- eMMC:8GB / 32GB / 64GB / 128GB
- OS:Android 7 / Ubuntu 18.04
RK3568 XB-LC
- CPU:RK35684*A55 2.0GHz
- DDR:2GB / 4GB / 8GB
- eMMC:8GB / 32GB / 64GB / 128GB
- OS:Android 11 / Debain 11 / BuildrootUbuntu 18.04 / 20.04
RK3588 XB-LC
- CPU:RK35884*A76+4*A55 2.4GHz
- DDR:4GB / 8GB / 16GB / 32GB
- eMMC:32GB / 64GB / 128GB / 256GB
- OS:Android 12 / Debain 11 / BuildrootUbuntu 20.04
BM1688 XB-LC
- CPU:BM16888*A53 1.6GHz
- DDR:4GB / 8GB / 16GB
- eMMC:32GB / 64GB / 128GB
- OS:Ubuntu 20.04
RK3576 XB-LC
- CPU:RK35764*A72+4*A53 2.2GHz
- DDR:2GB / 4GB / 8GB / 16GB / 32GB
- eMMC:32GB / 64GB / 128GB / 256GB
- OS:Android 14 / ubuntu 20.04
XB PLUS Series
The XB PLUS Series is widely used in AI applications, IoT terminal devices, smart healthcare, smart cities, industrial control, automation, robotics, and more.
- Flexible Processor Support:Supports a variety of processors, with options for custom interface expansion through the use of expansion boards (up to 8 RS-232/485).
- Compact Layout:Integrates dual gigabit Ethernet and industrial buses in a compact space, with a maximum power consumption of only 5W.
- 4G and 5G Coexistence:Supports both 4G and 5G modules.
- Display Options:Dual HDMI OUT or HDMI OUT + HDMI IN to meet high-density deployment needs.
- Power Supply:9-36V DC input (industrial-grade compatibility).
Core Features
- ●Processors:RK3568 | RK3399 | RK3588 | VS680
- ●Interface Expansion:Supports Mini-PCIE 4G/5G, with expansion boards available for RS-232/485/TTL/USB interfaces
- ●Industrial Interfaces:Includes 2×CAN, dual gigabit Ethernet, 8×GPIO, RS-232/485
- ●Display:HDMI 4K output + dual-screen independent display, optional LVDS/EDP/MIPI screens (up to 1200×1920)
- ●Power Supply:9-36V DC input (industrial-grade compatibility)
- ●Dimensions:135.1 x 95mm
RK3399 XB-PLUS
- CPU:RK33992*A72+4*A53 1.8GHz
- DDR:2GB / 4GB
- eMMC:8GB / 32GB / 64GB / 128GB
- OS:Android 7 / Ubuntu 18.04
RK3568 XB-PLUS
- CPU:RK35684*A55 2.0GHz
- DDR:2GB / 4GB / 8GB
- eMMC:8GB / 32GB / 64GB / 128GB
- OS:Android 11 / Debain 11 / BuildrootUbuntu 18.04 / 20.04
RK3588 XB-PLUS
- CPU:RK35884*A76+4*A55 2.4GHz
- DDR:4GB / 8GB / 16GB / 32GB
- eMMC:32GB / 64GB / 128GB / 256GB
- OS:Android 12 / Debain 11 / BuildrootUbuntu 20.04
RK3576 XB-PLUS
- CPU:RK35764*A72+4*A53 2.2GHz
- DDR:2GB / 4GB / 8GB / 16GB / 32GB
- eMMC:32GB / 64GB / 128GB / 256GB
- OS:Android 14 / Ubuntu 20.04
XB PLUSX Series
The XB PLUSX Series is widely used in industrial servers, smart displays, in-vehicle terminals, intelligent retail, medical imaging, and real-time data interaction applications.
- Multimedia Upgrade:Specifically designed for industrial multimedia applications, featuring the first-ever M.2 SATA + dual HDMI input/output architecture, supporting synchronization of 4 display signals (RK3588).
- Networking:Onboard 4 x USB 3.0 interfaces and 3 gigabit Ethernet ports, 2 HDMI OUT + 1 HDMI IN, supports both 4G and 5G modules coexistence.
- Low Power:Power consumption controlled at 8.5W (Max), with flexible BT5.2/WiFi6 wireless module options.
Core Features
- ●Processors:RK3568 | RK3399 | RK3588 | VS680
- ●Key Upgrade:New M.2 SATA interface (supports high-speed storage expansion)
- ●HDMI Input:Supports 1080P (RK3588 optional 4K input)
- ●Network Redundancy:Dual gigabit Ethernet + optional third gigabit/100M Ethernet port
- ●Bluetooth/WiFi:Standard BT5.2 (backward compatible), WiFi 6 (802.11ax) optional
- ●Audio Flexibility:Amplifier supports 4Ω/8Ω speakers (3W-10W optional)
- ●Dimensions:135.1 x 95mm
RK3399 XB-PLUSX
- CPU:RK33992*A72+4*A53 1.8GHz
- DDR:2GB / 4GB
- eMMC:8GB / 32GB / 64GB / 128GB
- OS:Android 7 / Ubuntu 18.04
RK3568 XB-PLUSX
- CPU:RK35684*A55 2.0GHz
- DDR:2GB / 4GB / 8GB
- eMMC:8GB / 32GB / 64GB / 128GB
- OS:Android 11 / Debain 11 / BuildrootUbuntu 18.04 / 20.04
RK3588 XB-PLUSX
- CPU:RK35884*A76+4*A55 2.4GHz
- DDR:4GB / 8GB / 16GB / 32GB
- eMMC:32GB / 64GB / 128GB / 256GB
- OS:Android 12 / Debain 11 / BuildrootUbuntu 20.04
RK3576 XB-PLUSX
- CPU:RK35764*A72+4*A53 2.2GHz
- DDR:2GB / 4GB / 8GB / 16GB / 32GB
- eMMC:32GB / 64GB / 128GB / 256GB
- OS:Android 14 / Ubuntu 20.04
