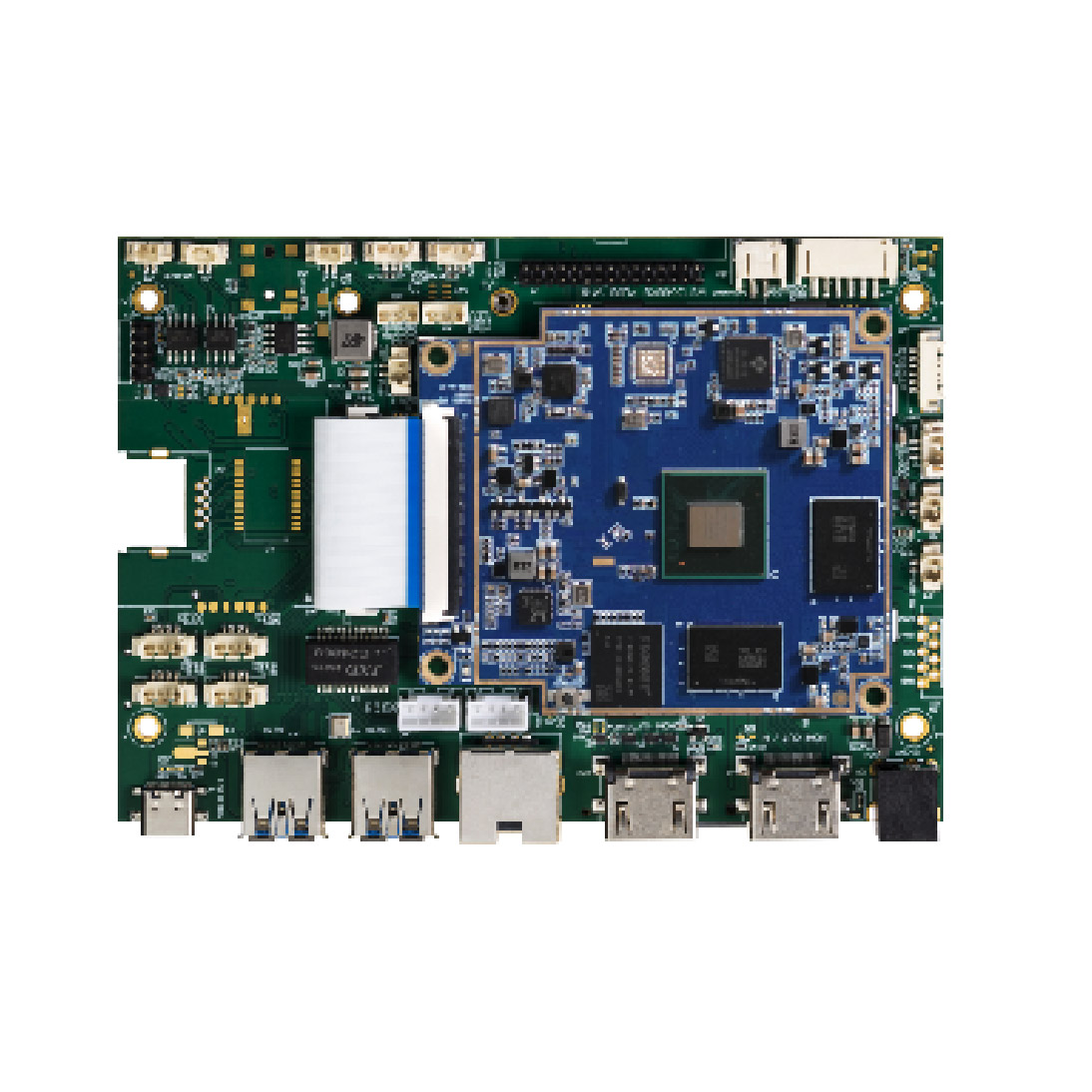

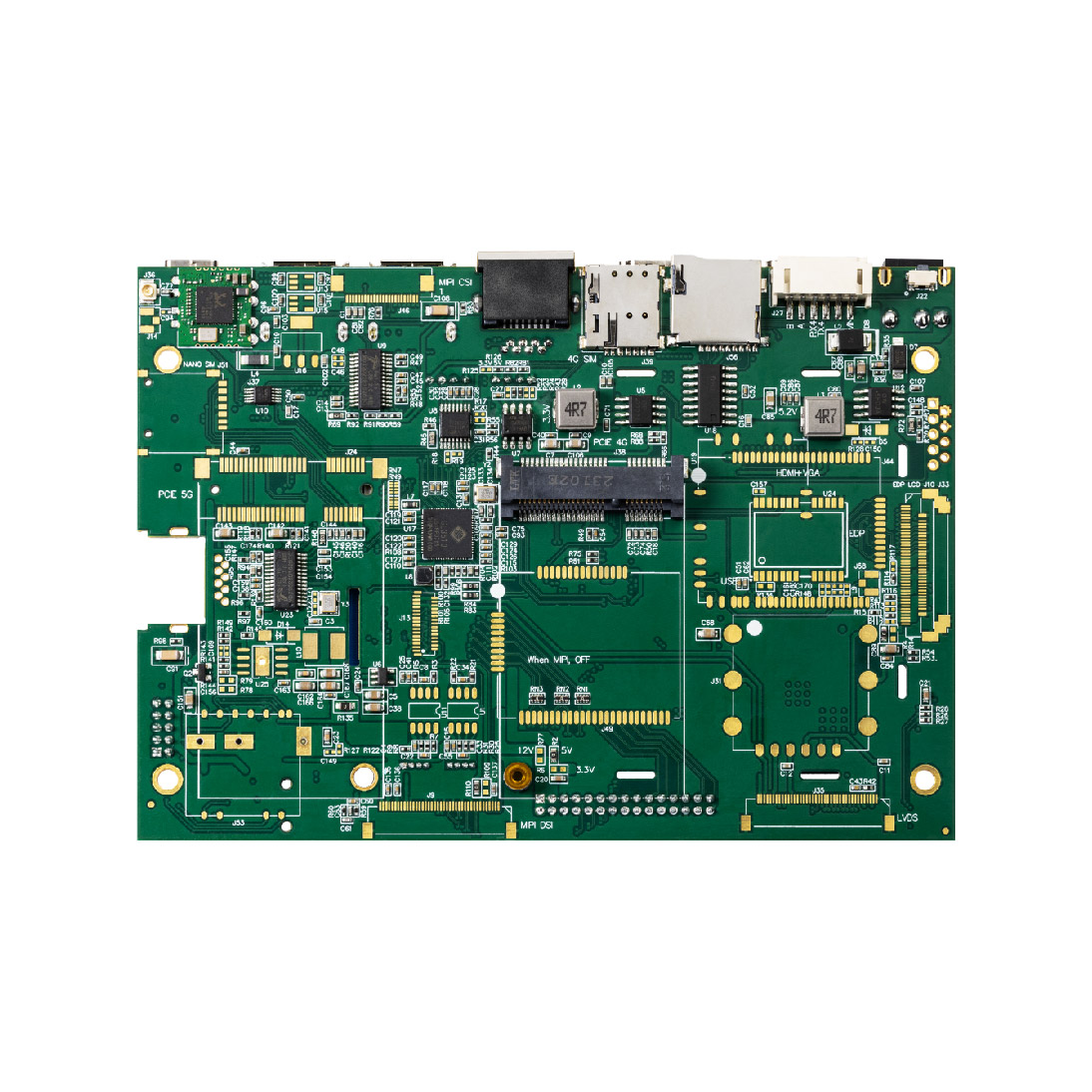

SENARYTECH VS680 XB PLUS High-EndIntelligent Multimedia Processing
ARM Embedded Single Board Computer - XB PLUS

SENARYTECH VS680 XB PLUS High-EndIntelligent Multimedia Processing

This high-performance motherboard is designed for demanding industrial applications, offering robust processing capabilities. It excels in multimedia tasks and advanced data processing, making it ideal for complex environments. With extensive connectivity options, it ensures flexible integration into various systems.

  • CPU:Quad-core ARMCortex-A73 Senarytech® VS680, up to 2.1GHz
  • NPU:Integrated 6.75 TOPS for enhanced AI processing
  • Memory & Storage:Supports up to 4GB LPDDR4 and 128GB eMMC
  • Connectivity Options:I2C, USB, RJ45, SIM, TF, GPIO, MIC, Wi-Fi, RS-232, RS-485, Bluetooth, Speaker, Headphone, TTL
  • Multimedia Interfaces:HDMI, eDP, LVDS, MIPI
  • Expansion Support:Mini-PCIe 4G/5G
  • Power Input:DC 9-36V
  • Power Consumption:8.5W (Max)
  • Operating Temperature:0℃ to 70℃ (Optional:-20℃ to 70℃ /-40℃ to 70℃)

VS680

VS680
  • Performance:Robust processing power suitable for various industrial applications
  • OS Compatibility:Android 12, Armbian

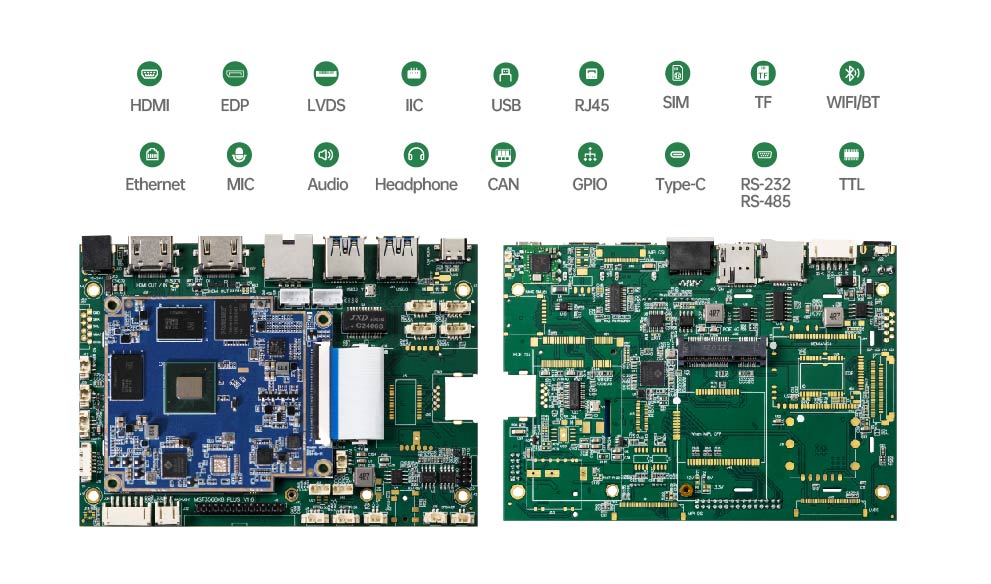

Comprehensive Interfaces
  • Ethernet:1000M RJ-45 x 2 (one optional)
  • USB:USB3.0Type-Ax2; USB2.0 x 4

Comprehensive Interfaces

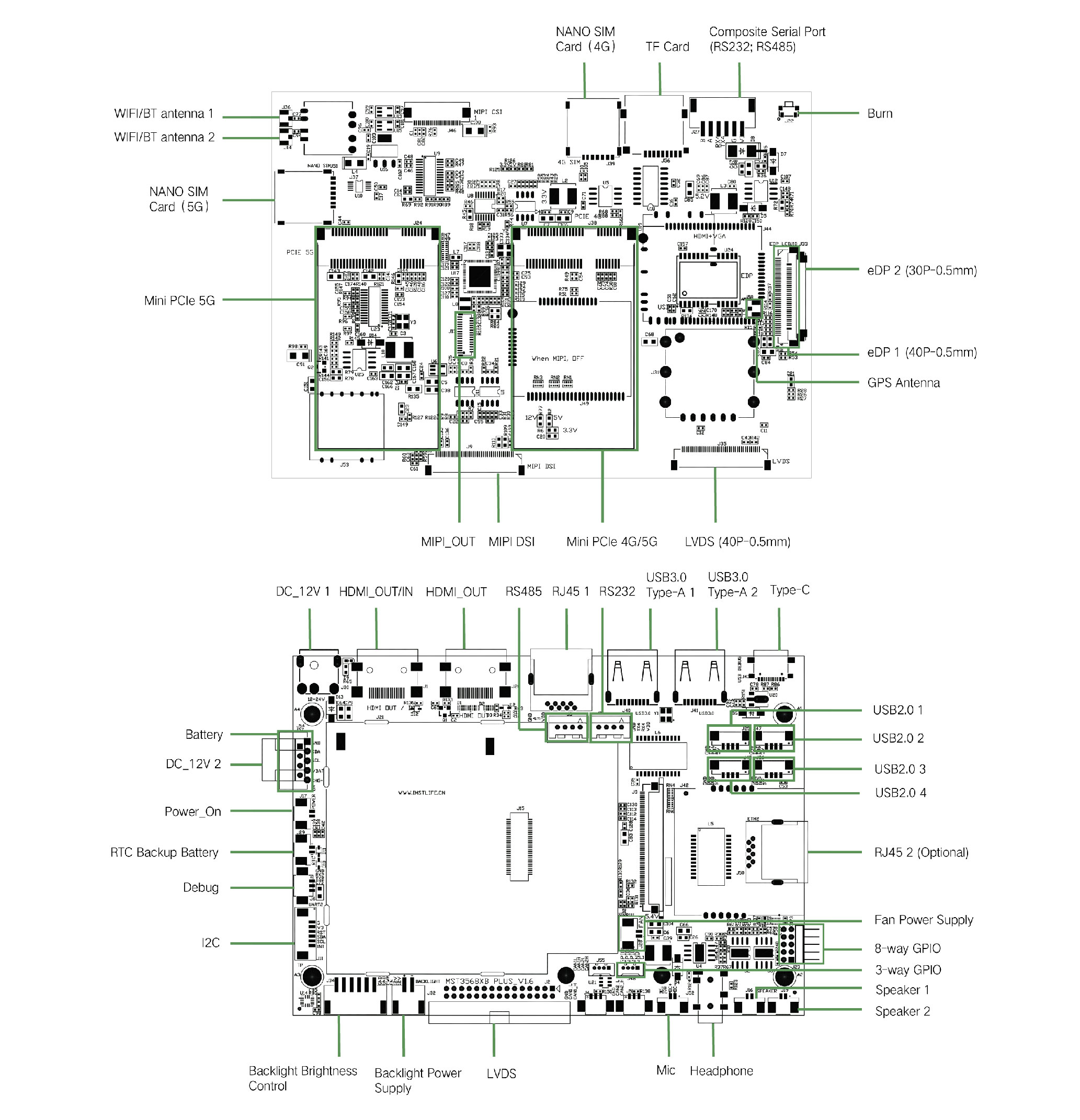

Innovative Capabilities

Innovative Capabilities
  • Graphics:Supports 4K dual-screen independent display
  • Wireless:802.11 b/g/n Wi-Fi; BT4.2 (optional BT5.0/5.2)
  • Pre-installed OS
SDK
Provide SDK Toolkit
Provide API
Documents
Product Documentation
Tutorials and Examples
  • Technical Online Support
  • Rapid Response With Solution
PARAMETER TABLE
ParameterDetails
ArchitectureARM
CPUQuad-core ARM Cortex-A73 Senarytech® VS680, frequencty up to 2.1GHz
OSAndroid 12; Armbian
RAMLPDDR4，4GB
StorageeMMC，32GB（optional 64GB、128GB）
ExpansionSupport Mini-PCIe 4G/5G、RS232、RS485、TTL、CAN、USB Hub Expansion Board (Optional)
Audio IOAmplifier x 2（8Ω,5W）；MIC x 1
Power InputDC 12V（optional：9-36V）
Ethernet1000M RJ-45 x 1; 100M RJ-45 x 1（one optional）
WIFI802.11 b/g/n x 1（optional 802.11 ac/ax）
BTBT4.2 x 1（selectable version：BT5.0/5.2）（optional）
Serial portRS232 x 1；RS485 x 1；composite (RS232;RS485) x 1
USBUSB3.0 Type-A x 2; USB2.0 x 4
Type-CDownload and debug
HeadphoneSupport 3.5mm dual-channel headphone (optional)
RTCSupport
GPIO8-way GPIO x 1；3-way GPIO x 1（optional）
TF cardSupports 1 self-ejecting TF card (Optional)
SIM cardMini-PCIe 4G/5G x 1；Mini-PCIe 5G x 1
LVDSMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
MIPIMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
eDPMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
HDMI OUTSupports 4K 3840 x 2160; Supports dual-screen display
HDMI INSupport USB2.0 MJPEG 1080P@60fps/USB3.0 MJPEG 1080P@60fps/YUV 1080P@60fps（optional）
Input VoltageDC 12V optional：9-36V
Power Consumption8.5W（Max) N/A
Ambient temperature0℃~ 70℃ optional：-20℃~ 70℃ /-40℃~ 70℃
Storage Temperature-20℃~ 70℃ N/A
Transport Temperature-20℃~ 70℃ N/A
Relative Humidity<75%RH N/A
