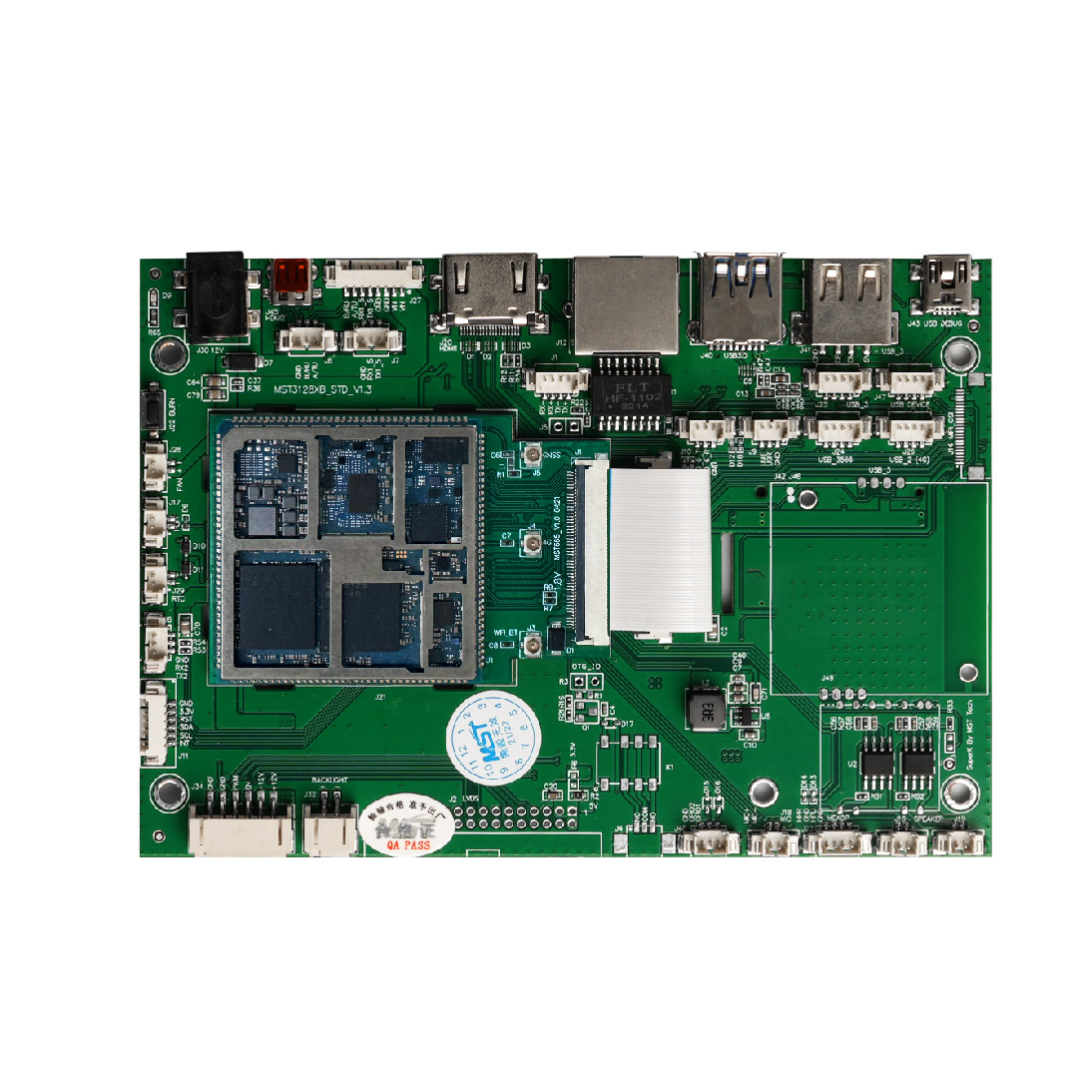

Qualcomm Snapdragon450 XB Low Power & Lightweight
ARM Embedded Single Board Computer- XB

Qualcomm Snapdragon450 XB Low Power & Lightweight

Perfect for smart retail solutions (like self-service checkouts), industrial automation (such as compact controllers), and smart home applications, the Snapdragon 450 XB motherboard offers reliable performance and extensive connectivity options. Its efficient architecture supports diverse data processing and seamless device integration across various environments.

  • CPU:Octa-core ARMCortex A-53 Qualcomm® Snapdragon™ 450, up to 1.8GHz
  • Memory & Storage:Supports up to 2GB LPDDR3 and 16GB eMCP
  • Connectivity Options:I2C, USB, RJ45, SIM, Bluetooth, Wi-Fi, RS-232, RS-485, MIC, Speaker, Headphone, GPIO
  • Multimedia Interfaces:HDMI、LVDS、MIPI
  • Expansion Support:4-Port USB HUB board (optional)
  • Power Input:DC 12V
  • Power Consumption:5W (Max)
  • Operating Temperature:-20℃ to 70℃ (Storage:-40℃ to 85℃)

Snapdragon450

Snapdragon450
  • Performance:Exceptional computing power for 2D/3D graphics processing and full HD video encoding/decoding
  • OS Compatibility:Latest Android

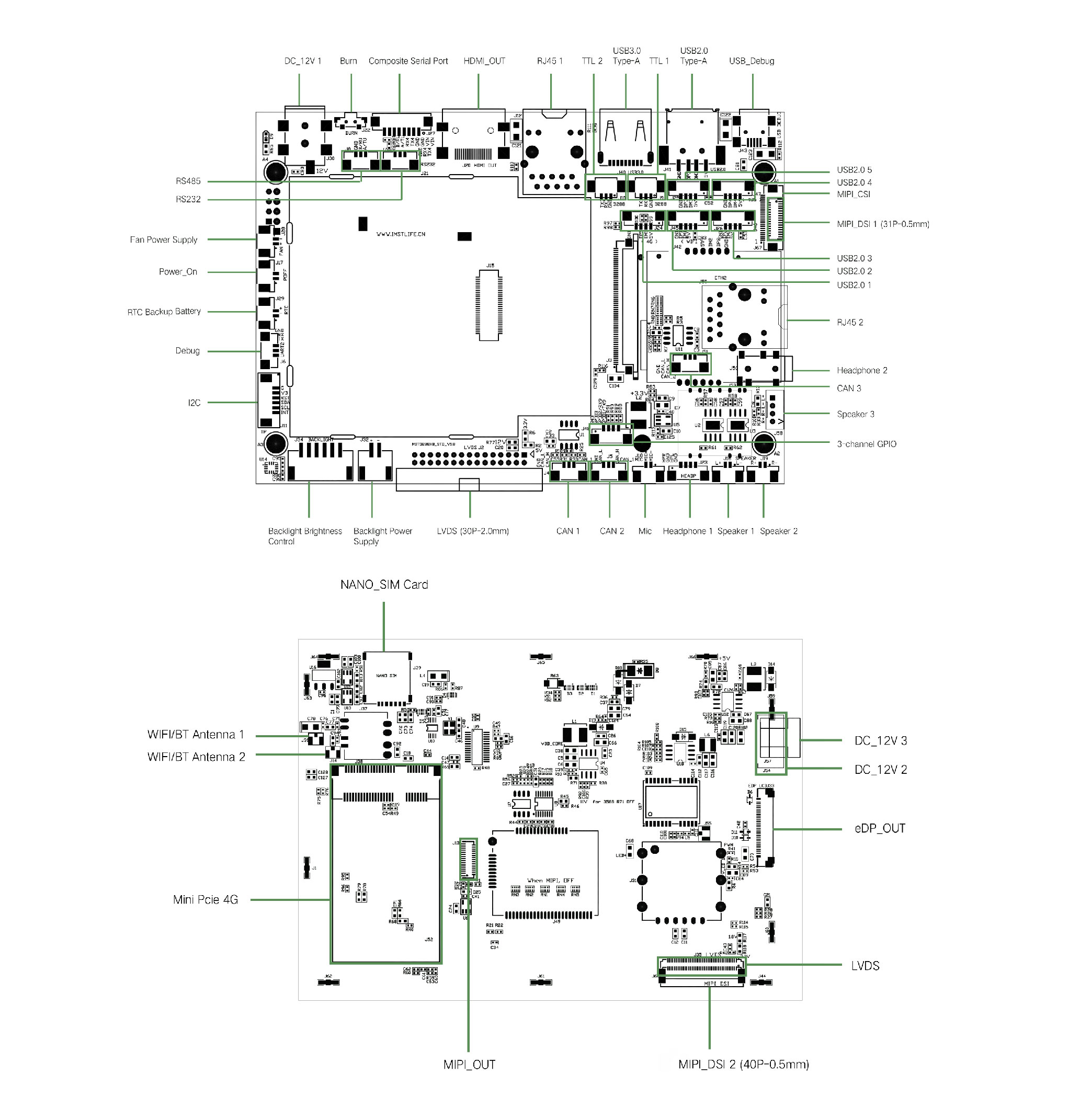

Comprehensive Interfaces
  • Ethernet:100M RJ-45 x 1
  • USB:USB2.0Type-A x2

Comprehensive Interfaces

Innovative Capabilities

Innovative Capabilities
  • Audio:Dual amplifiers and headphone support
  • Expansion:Supports Mini-PCIe 4G module and various GPIO options
  • Pre-Installed Operating System
Absolute Maximum Ratings
  • Power Input:DC 12V
  • Power Consumption:5W (Max)
  • Operating Temperature:-20℃ to 70℃ (Storage:-40℃ to 85℃)

Absolute Maximum Ratings

SDK
Provide SDK Toolkit
Provide API
Documents
Product Documentation
Tutorials and Examples
  • Technical Online Support
  • Rapid Response With Solution
PARAMETER TABLE
ParameterDetails
ArchitectureARM
CPUOcta-core ARM Cortex-A53 Qualcomm® Snapdragon ™ 450，frequency up to 1.8GHz
OSAndroid 9
RAMLPDDR3，2GB
StorageeMCP，16GB
ExpansionSupports 4-Port USB HUB board (Optional)
Audio IOAmplifier x 1（4Ω,3W）；MIC x 1
Power InputDC 12V
Ethernet100M RJ-45 x 1
USBUSB2.0 Type-A x 2
HDMI OUTSupport
WIFI802.11 a/b/g/n/ac
BTBT4.2 x 1（optional）
UARTRS232 x 1； RS485 x 2；composite（RS232；RS485）x 1
OTGMini USB x 1（download and debug）
RTCSupport
GPIO3 x GPIO x 1; 8 x GPIO x 1
SIM cardSIM card x1
MIPI DSISupport
Input VoltageDC 12V N/A
Power Consumption5W（Max.) N/A
Ambient temperature-20℃~ 70℃ N/A
Storage Temperature-40℃~ 85℃ N/A
Transport Temperature-40℃~ 85℃ N/A
Relative Humidity<75%RH N/A
