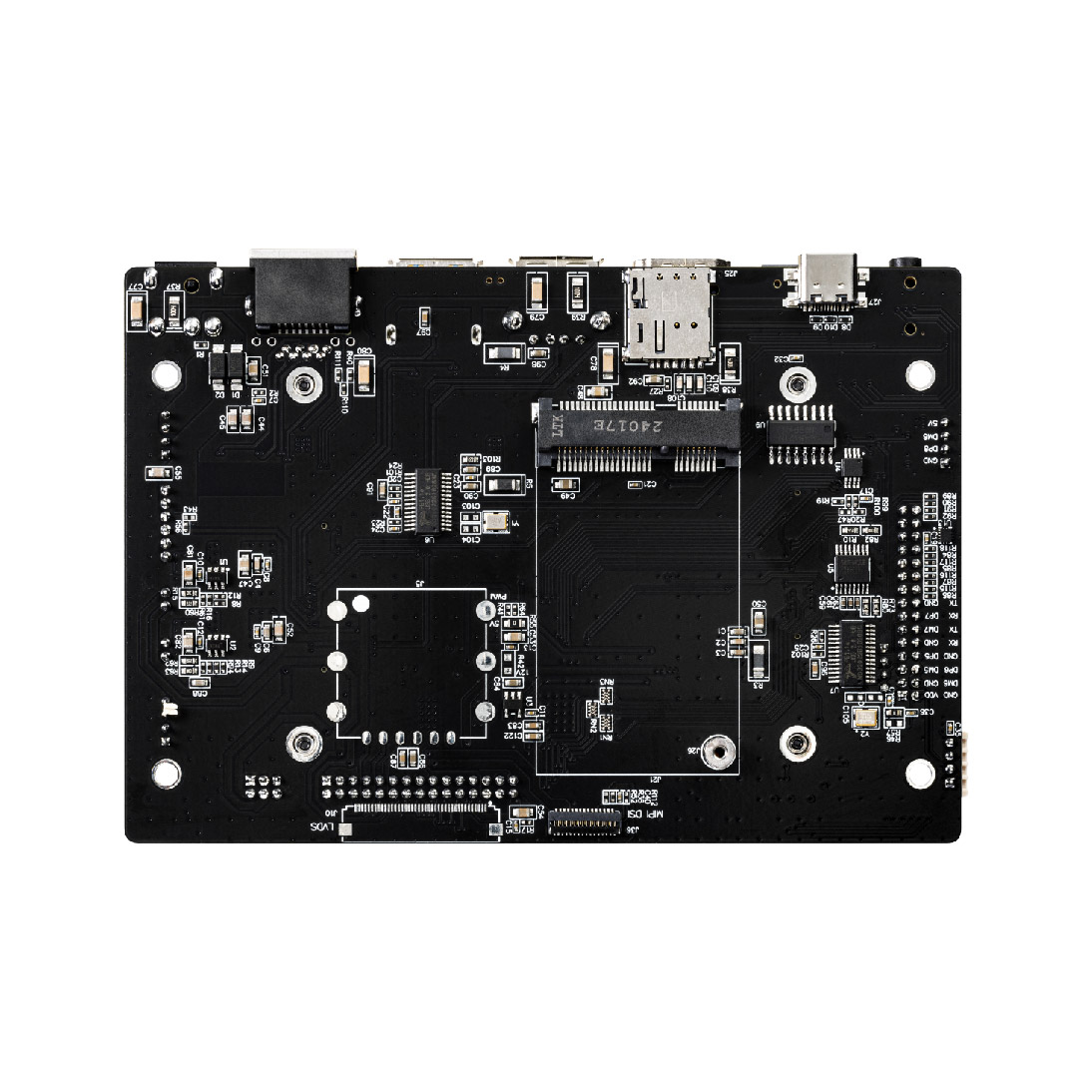

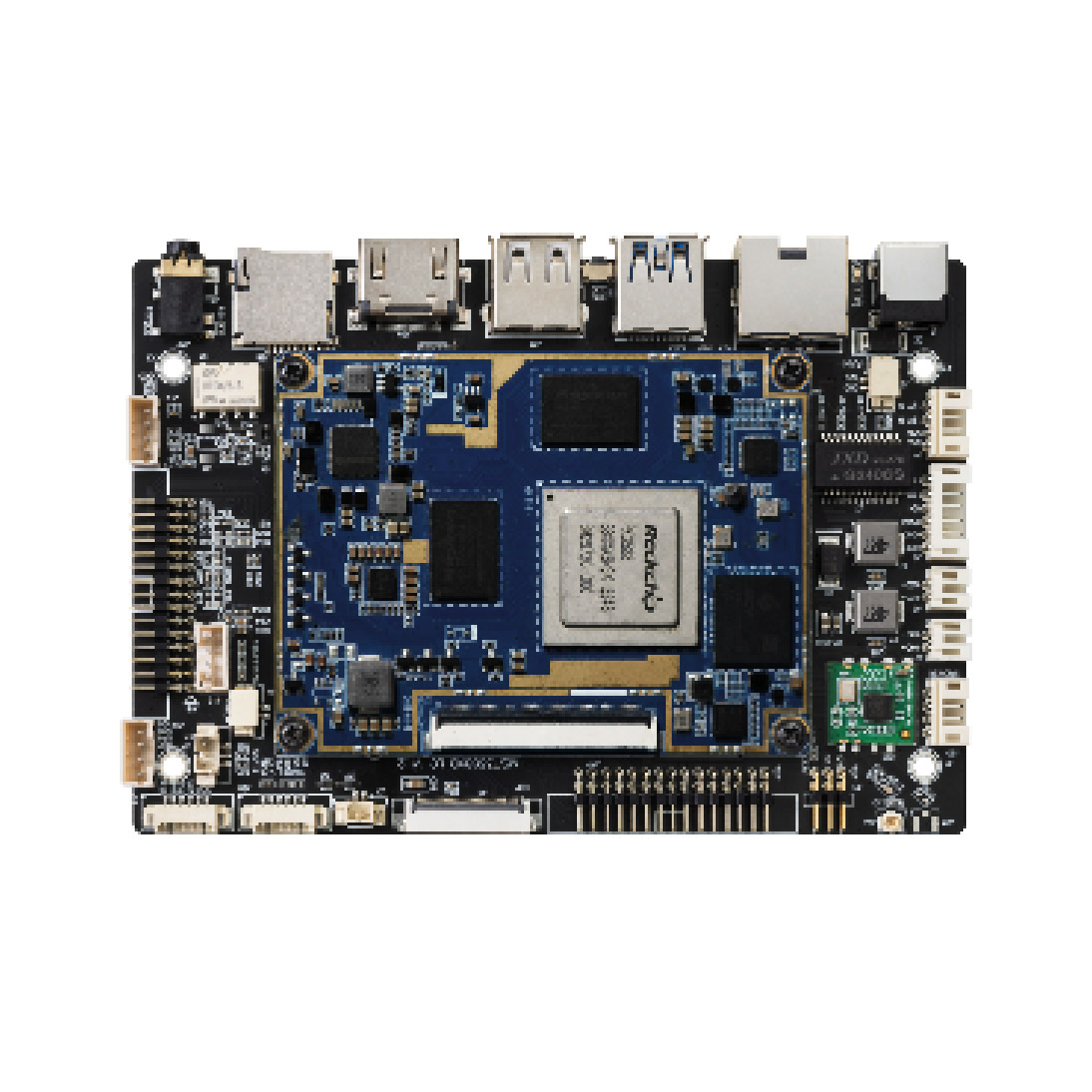

Rockchip RK3588 XB LC High Computing Power AI
ARM Embedded Single Board Computer - XB LC

Rockchip RK3588 XB LC High Computing Power AI

This high-performance board is tailored for AI and multimedia applications. Designed for industrial automation and intelligent systems, it provides exceptional processing power. Ideal for projects requiring advanced capabilities.

  • CPU:Dual-cluster Rockchip RK3588 (4x Cortex-A76 + 4x Cortex-A55), up to 2.4GHz
  • NPU:Integrated 6TOPS NPU for enhanced AI performance
  • Memory & Storage:Up to 32GB LPDDR4 and 256GB eMMC
  • Video Outputs:HDMI IN/OUT, eDP, LVDS, MIPI
  • Expansion Slots:1 x Mini-PCIe 4G module
  • Power Input:DC 9-36V
  • Max Power Draw:8.5W
  • Connectors:1.25/2.0mm pitch wire-to-board
  • Connectivity Options:I2C, USB, RJ45, SIM, Bluetooth, Wi-Fi, RS-232, RS-485, MIC, Speaker, Headphone, GPIO

RK3588

RK3588
  • CPU Strength:Quad-core strong computing power
  • OS Support:Android, Ubuntu 20.04, Debian 11, Buildroot, NeoKylin

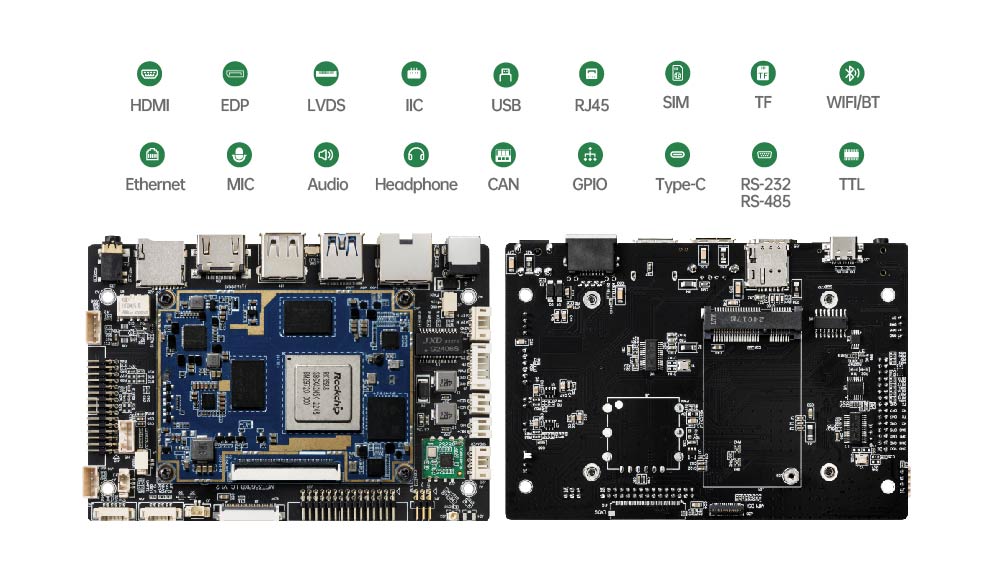

Interface Capabilities
  • Networking:1000M RJ45 x 1
  • USB Ports:USB3.0 Type-A x 1, USB2.0 Type-A x 1, USB2.0 x 3 (4P-2.0mm)

Interface Capabilities

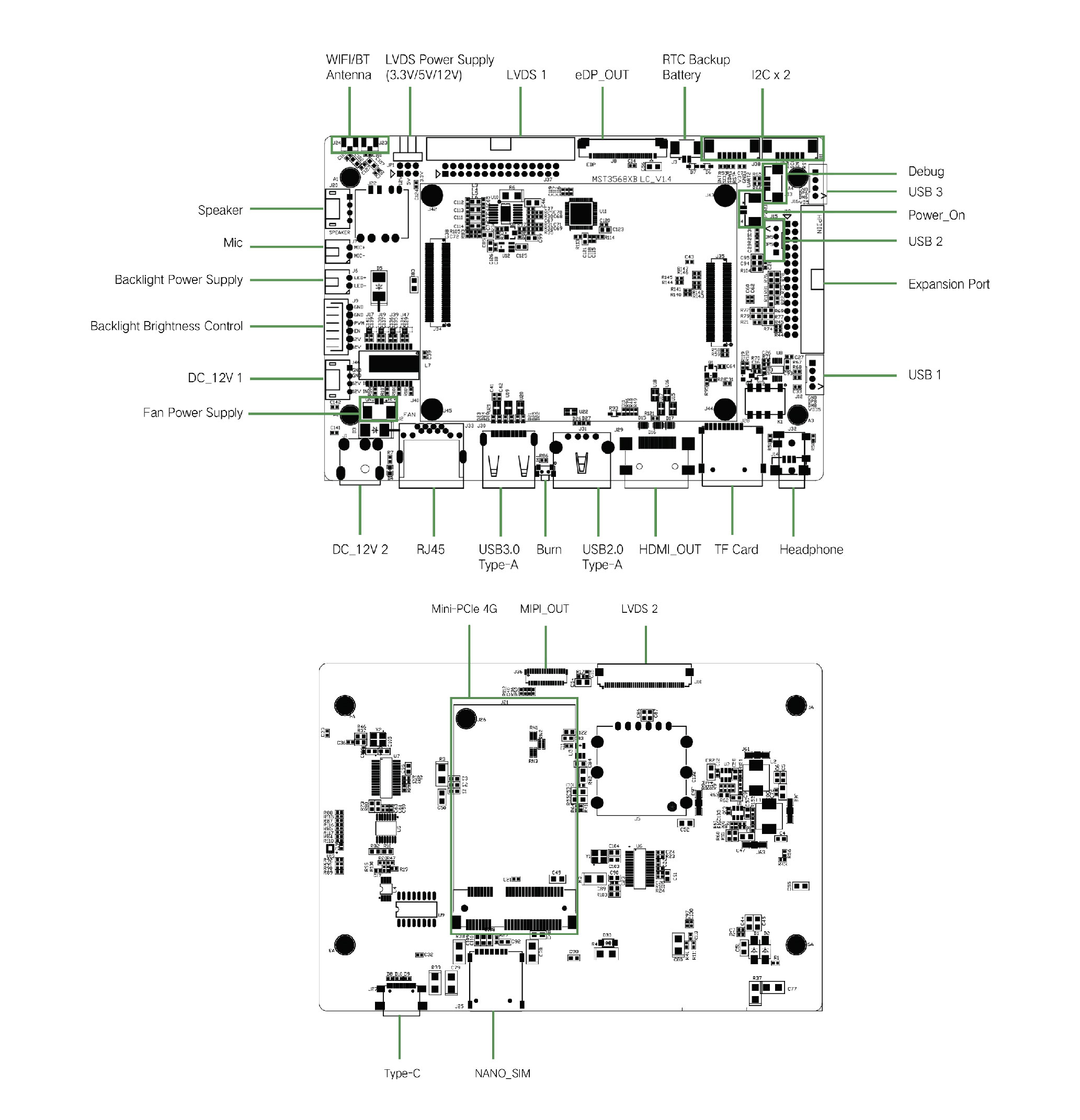

Development Support

Development Support
  • Ecosystem:Supports 200W and 500W
    MIPIIndustrial Cameras
  • Power Specs:PowerSupply: DC 9-36V
    Operating Temp: 0℃ to 70℃ (Optional:-20℃ to 70℃ /-40℃ to 70℃)

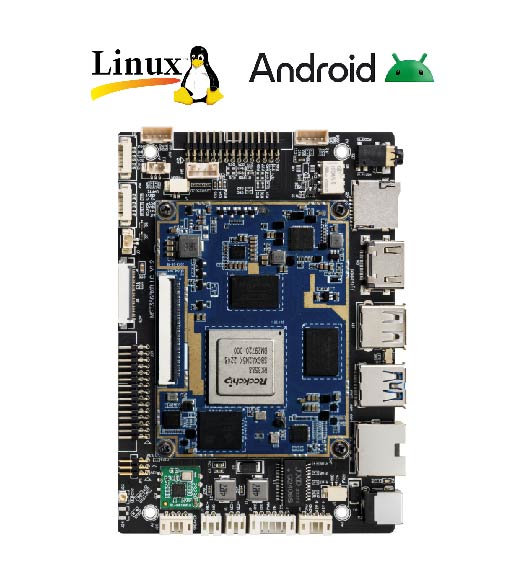

Extra Features
  • Peripheral Modules:4G/5G Modules
  • Pre-installed OS:Linux/Android
  • eDP DualScreen Kit

Extra Features

SDK
Provide SDK Toolkit
Provide API
Documents
Product Documentation
Tutorials and Examples
  • Technical Online Support
  • Rapid Response With Solution
PARAMETER TABLE
ParameterDetails
ArchitectureARM
CPUQuad-core ARM Cortex-A76 + Quad-core ARM Cortex-A55 Rockchip RK3588, frequency up to 2.4GHz
OSAndroid 12/Ubuntu 20.04/Debian 11/Buildroot/NeoKylin
RAMLPDDR4，4GB（optional 8GB、16GB、32GB）
StorageeMMC，32GB（optional 64GB、128GB、256GB）
ExpansionSupport Mini-PCIe 4G/5G
Audio IOAmplifier x 1（8Ω,5W，dual-channel）；MIC x 1
Power inputDC 12V
Ethernet1000M RJ-45 x 1
USBUSB3.0 Type-A x 1；USB2.0 Type-A x 1；USB2.0 x 3（4P-2.0mm)( Shared with J18）
HDMI OUT4K x 1 (3840x2160)；Supports dual-screen display (Optional)
WIFI802.11 b/g/n x 1(optional 802.11 ac/ax）
BTBT4.2 x 1（optional）
Serial portRS-232 x 2；RS-485 x 1（optional TTL）
Type-CDownload and debug
RTCSupport
GPIO8 x GPIO（optional）
TF cardSupport 1 self-ejecting TF card (Optional)
SIM cardSupport Mini-PCIe 4G x 1
LVDSMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
MIPIMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
eDPMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
Input VoltageDC 12V N/A
Power Consumption8.5W（Max.) N/A
Ambient temperature0℃~ 70℃ optional：-20℃~ 70/-40℃~ 70℃
Storage Temperature-20℃~ 70℃ N/A
Transport Temperature-20℃~ 70℃ N/A
Relative Humidity<75%RH N/A
AccessoriesStandard: Power Adapter、WIFI/4G antenna, optional: USB debug cable、Speaker /USB camera
