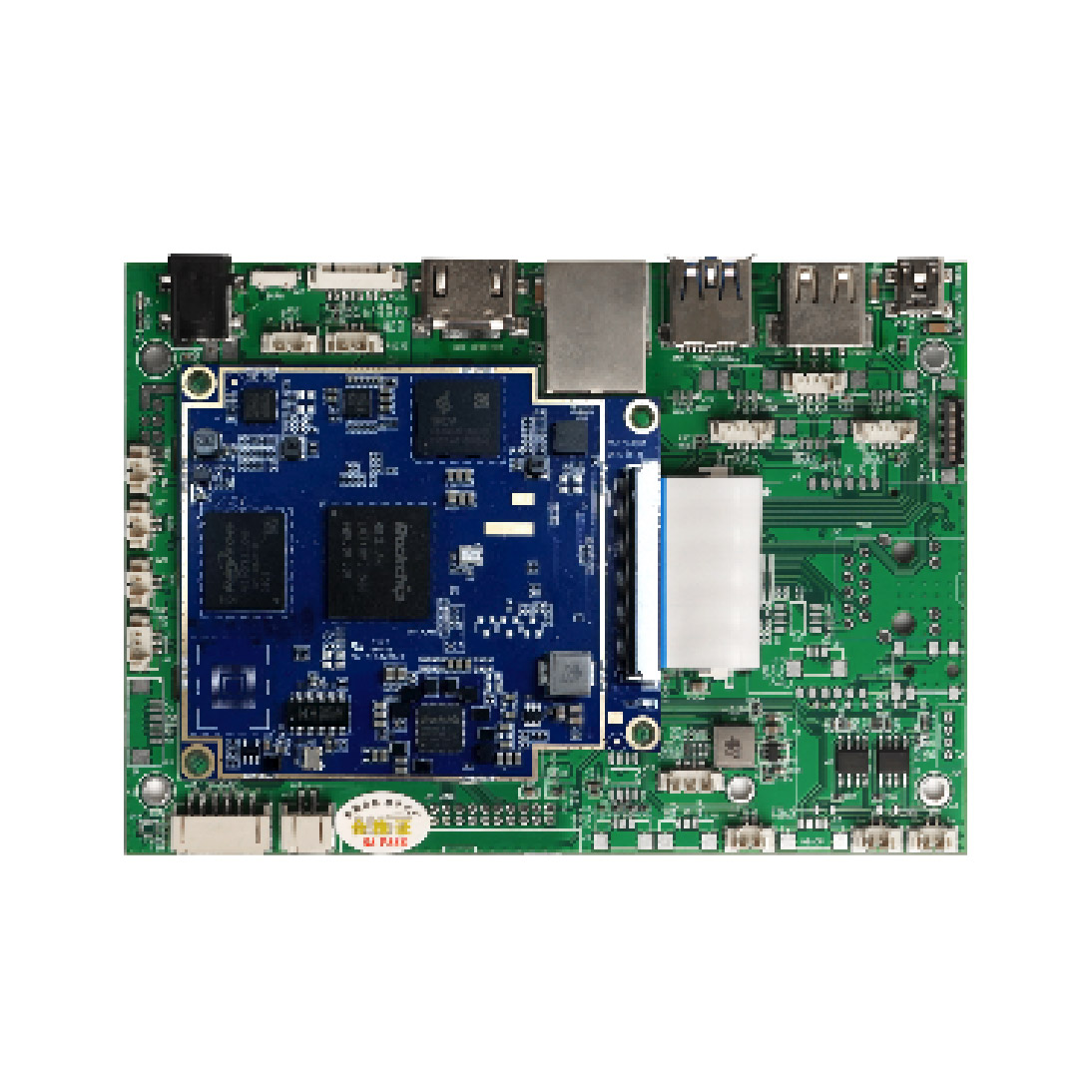

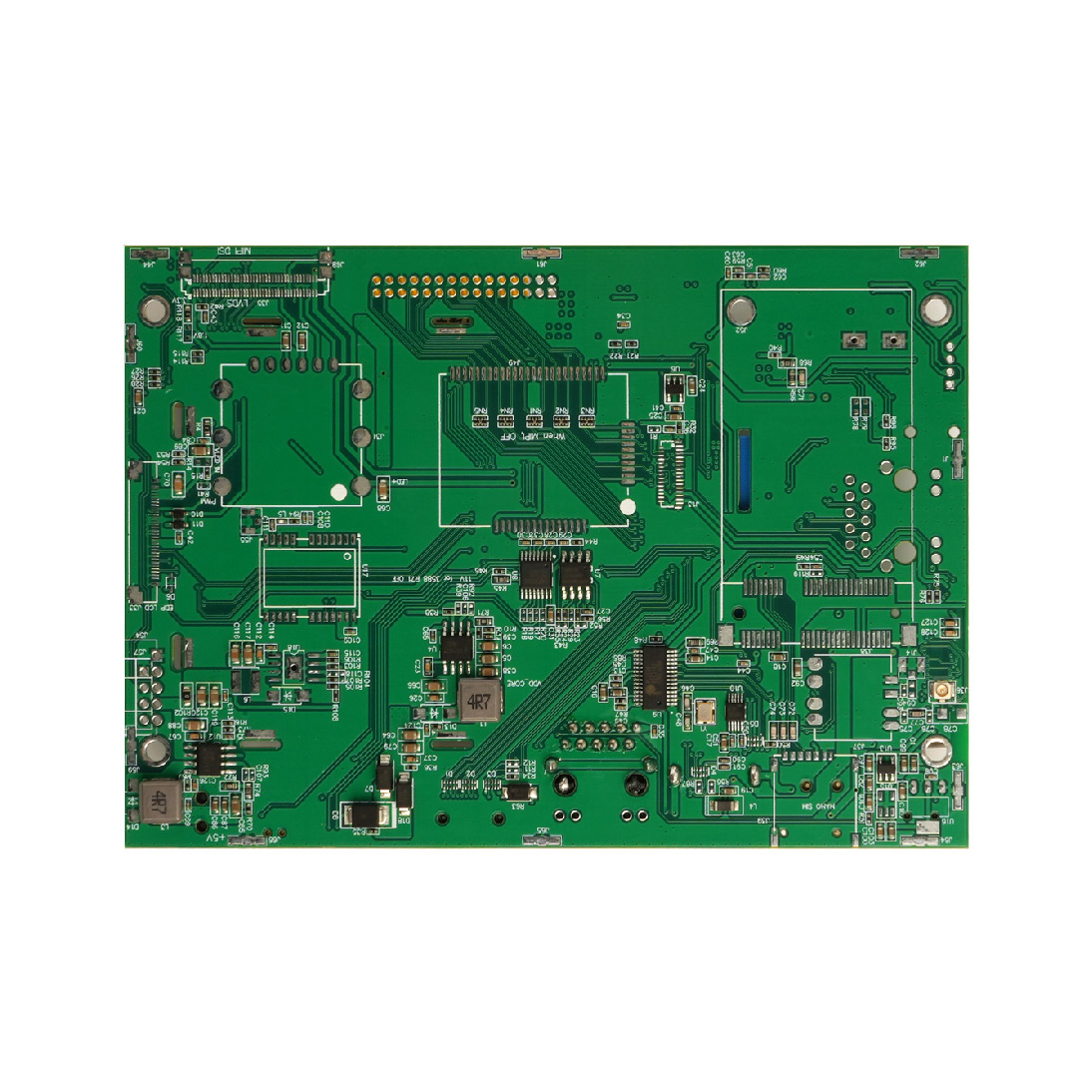

Rockchip RK3576XB High Computing Power & Low Power
ARM Embedded Single Board Computer- XB

Rockchip RK3576XB High Computing Power & Low Power

Designed for AI-powered applications in industrial environments. Offers robust performance for real-time data processing, robotics, and machine vision in automation systems.

  • CPU:Octa-core Rockchip RK3576 (4x Cortex-A72 + 4x Cortex-A53), up to 2.2GHz
  • NPU:Integrated 6TOPS NPU for enhanced AI performance
  • Memory & Storage:Up to 16GB LPDDR5 and 256GB eMMC
  • Connectivity Options:I2C, USB, RJ45, SIM, Bluetooth, Wi-Fi, RS-232, RS-485, MIC, Speaker, Headphone, CAN, GPIO
  • Multimedia Interfaces:HDMI IN/OUT, eDP, LVDS, MIPI
  • Expansion Support:1x Mini-PCIe 4G/5G
  • Power Input:DC 12V (Optional: 9-36V)
  • Power Consumption:8.4W (Max)
  • Operating Temperature:0℃ to 70℃ (Optional:-20℃ to 70℃ /-40℃ to 85℃)
  • Connectors:1.25/2.0mm pitch wire-to-board

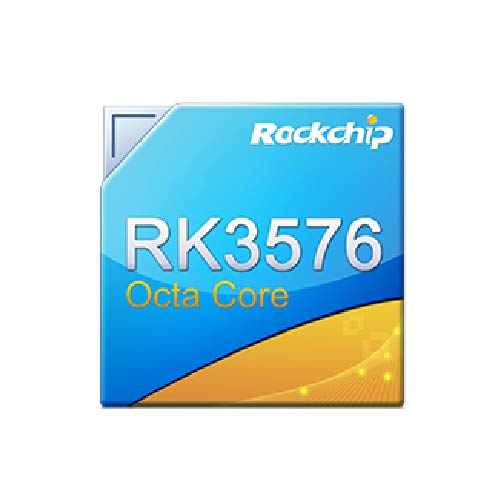

RK3576

RK3576
  • Performance:2D/3D graphics processing and full HD video encoding/decoding
  • OS Compatibility:Android 12, Ubuntu 22.04

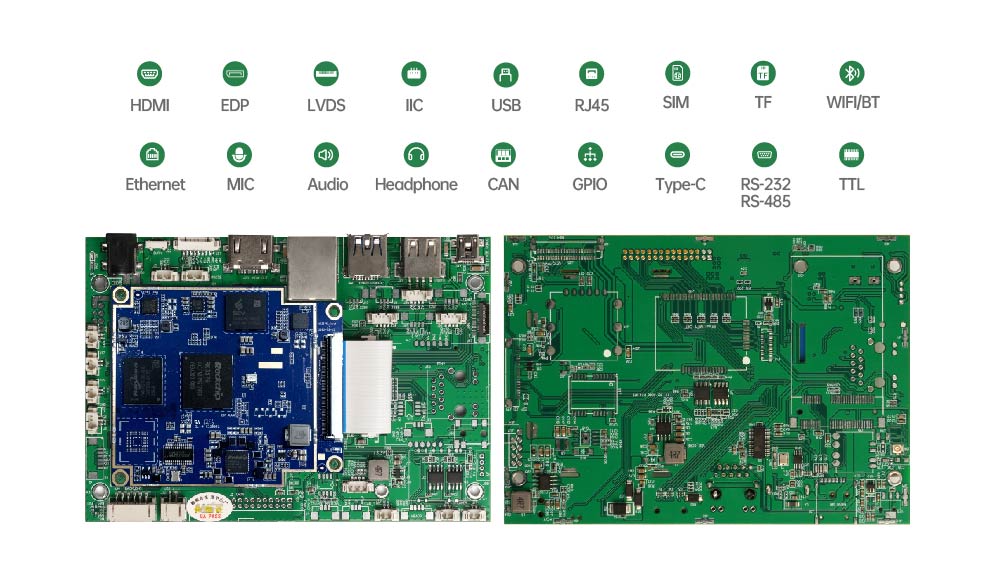

Comprehensive Interfaces
  • Ethernet:1000M RJ45 x 1 (optional: 1000M RJ45 x 1)
  • USB:USB3.0x4; USB2.0 x 4; Mini USB x 2
  • Audio:Amplifier x 1 (8Ω, 5W); MIC x 1; HDMI OUT x 1

Comprehensive Interfaces

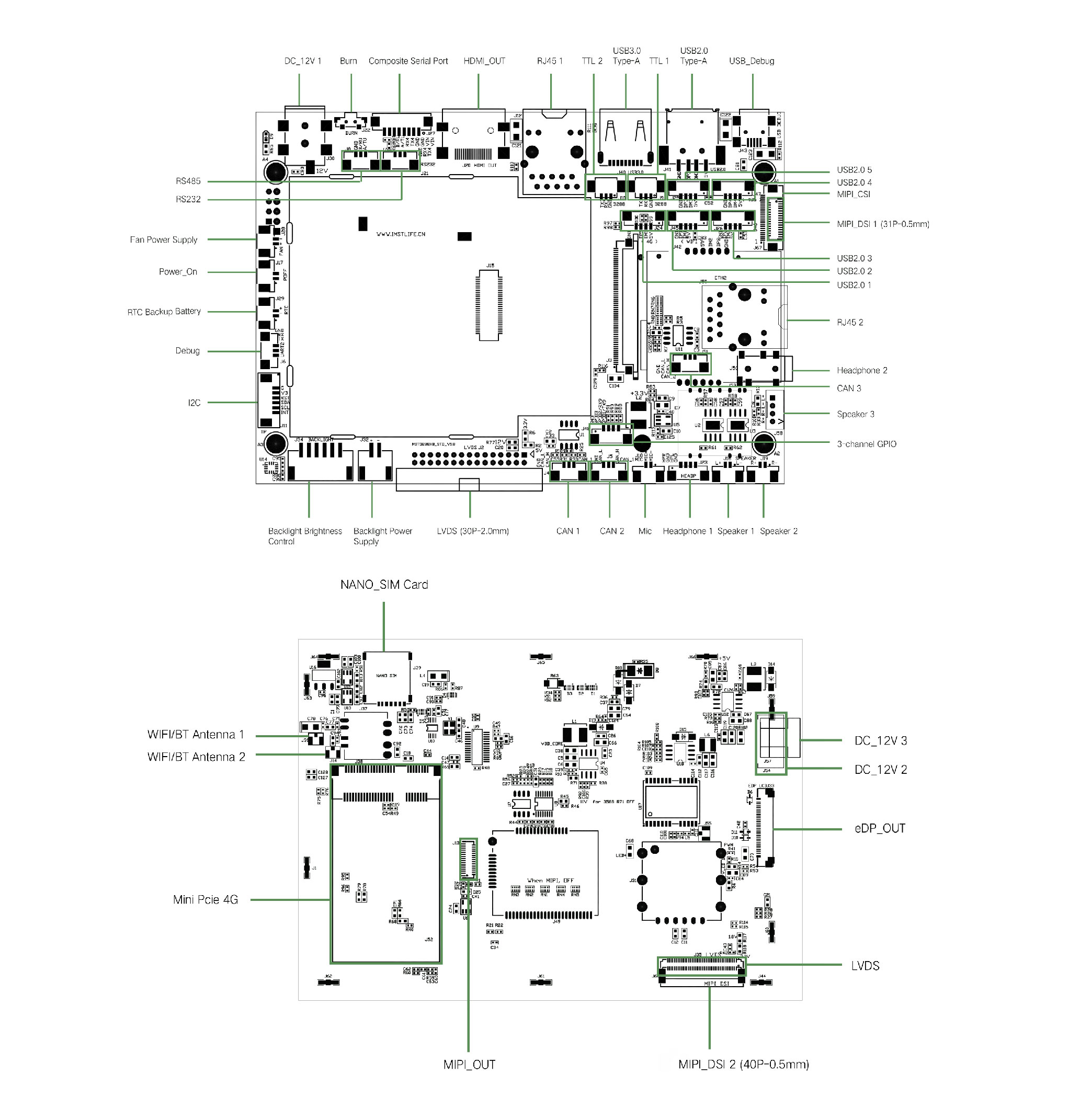

Innovative Capabilities

Innovative Capabilities
  • Expansion:Supports USB-to-CAN conversion with an external adapter board
  • Graphics:Supports 4K multi-screen display via HDMI
  • Wireless:802.11 b/g/n Wi-Fi (optional 802.11 ac/ax), BT4.2 (optional BT5.0/5.2)

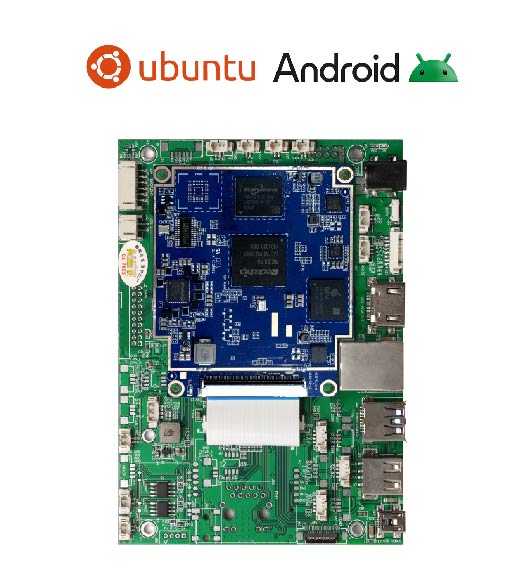

Absolute Maximum Ratings
  • Input Voltage:DC 12V
  • Power Consumption:8.4W (Max)
  • Operating Temperature:0℃ to 70℃ (Optional:-20℃ to 70℃ /-40℃ to 85℃)
  • Storage Temperature:-25℃ to 70℃ (Optional:-40℃ to 70℃)

Absolute Maximum Ratings

SDK
Provide SDK Toolkit
Provide API
Documents
Product Documentation
Tutorials and Examples
  • Technical Online Support
  • Rapid Response With Solution
PARAMETER TABLE
ParameterDetails
ArchitectureARM
CPUQuad-core ARM Cortex-A72 + Quad-core ARM Cortex-A53 Rockchip RK3576，frequency up to 2.2GHz
OSAndroid 12/Ubuntu 22.04
RAMLPDDR5，4GB（optional 8GB、16GB）
StorageeMMC，32GB（optional 64GB、128GB、256GB）
ExpansionSupport Mini-PCIe 4G
Audio IOAmplifier x 1（4Ω,3W）；MIC x 1
Power InputDC 12V
Ethernet1000M RJ-45 x 1
USBUSB3.0 Type-A x 1；USB2.0 Type-A x 1；USB2.0 x 5（4P-1.25mm）
CANCANx2
HDMI OUT4K x 1 (3840x2160)；Supports dual-screen display
WIFI802.11 b/g/n x 1（optional 802.11 ac/ax）
BTBT4.2 x 1（selectable version：BT5.0/5.2）（optional）
UARTRS-232 x 2；RS-485 x 1（optional TTL）
OTGDownload and debug
RTCSupport
GPIO3 xGPIO（optional）
SIM cardSupport Mini-PCIe 4G x 1
LVDSMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
MIPIMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
eDPMaximum resolution 1200 x 1920；supports dual-screen independent display (Optional)
Input VoltageDC 12V N/A
Power Consumption8.5W（Max.) N/A
Ambient temperature0℃~ 70℃ optional：-20℃~ 70/-40℃~ 70℃
Storage Temperature-20℃~ 70℃ N/A
Transport Temperature-20℃~ 70℃ N/A
Relative Humidity<75%RH N/A
